Genesis Site, Device and FT Configurations for Adpro Devicetype

Genesis Site, Device and FT Configurations for Adpro Devicetype

Adding a Site:
1. Click (+) to add a site

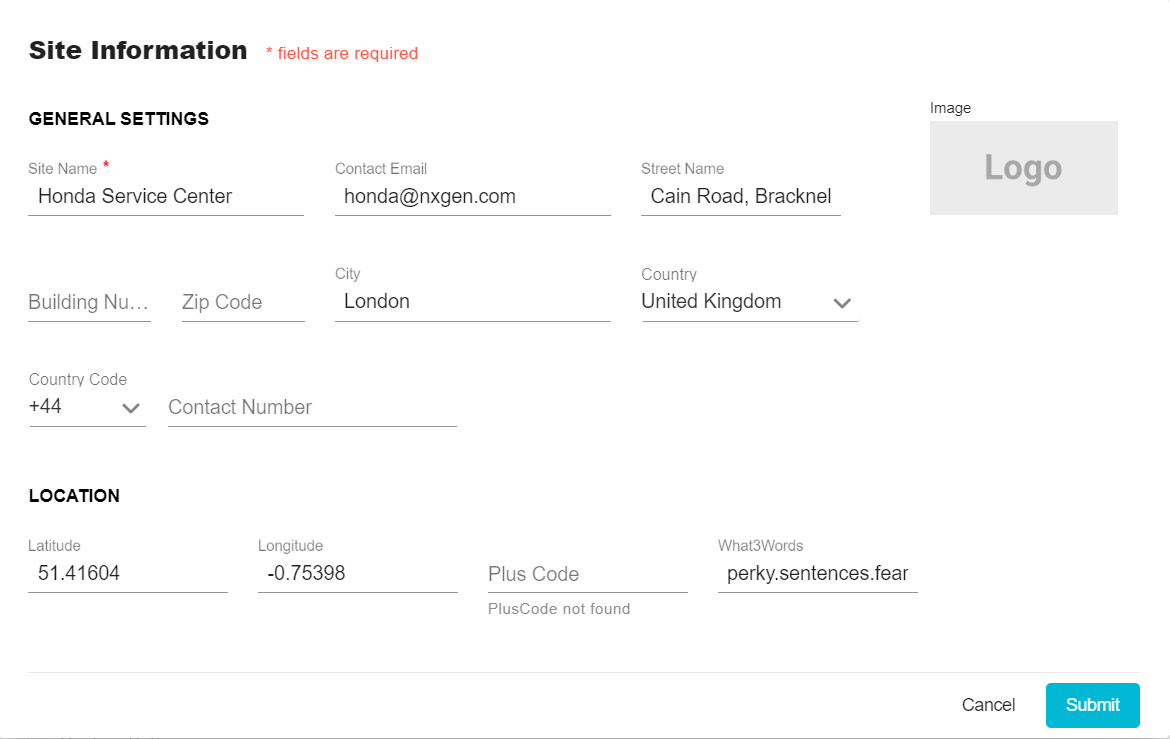

2. Provide Key properties like Name of the Site, and address details. Based on the availability of Site name, and its address, Location details will get auto filled:


3. Once the Site is successfully added in NXGEN, it will get synced with Talos on Site Category.

4. Inside the site, add a new device by selecting (+) button

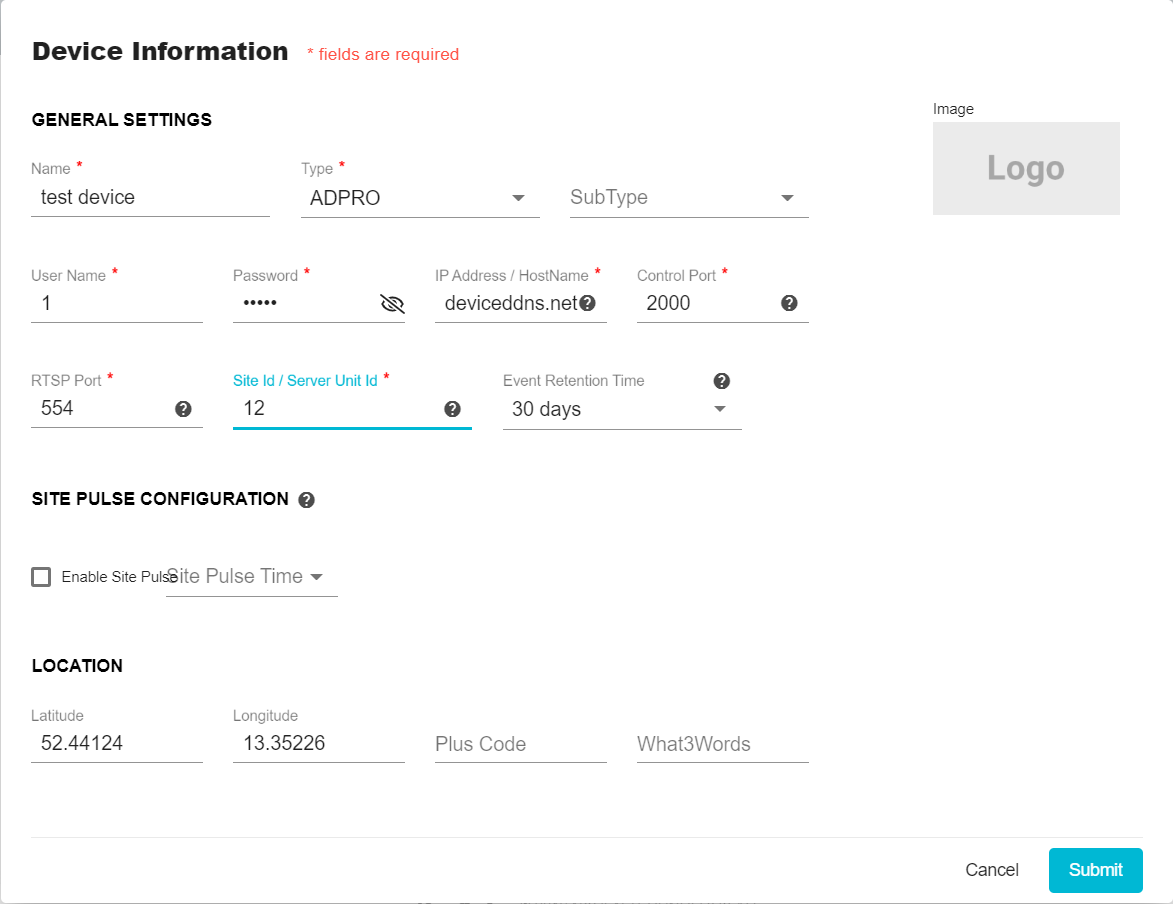

5. Select Type as "ADPRO" and fill up the necessary parameters like Username, Password, Host address (IP/Domain), Control port, RTSP port and Server Unit ID.


6. Once Device got added, ensure the Alarm configuration for the device updated properly using Adpro Clients such as XO.

7. Open the device using the client Application

8. Navigate to System option

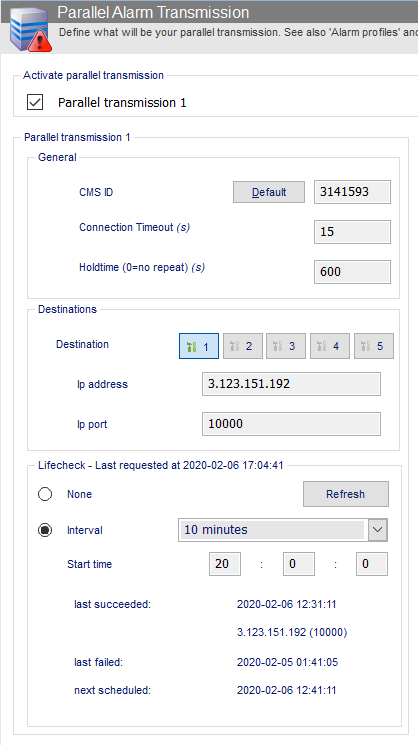

9. Navigate to Parallel Alarm Transmissions settings

10. Set the NXGEN Alarm Receiver Server IP (3.123.151.192) and IP Port (10000) in Parallel Transmission 1 Destination. Leave the CMS ID as default value.
Also set the Lifecheck configured to ensure the Site pulse report to the alarm server

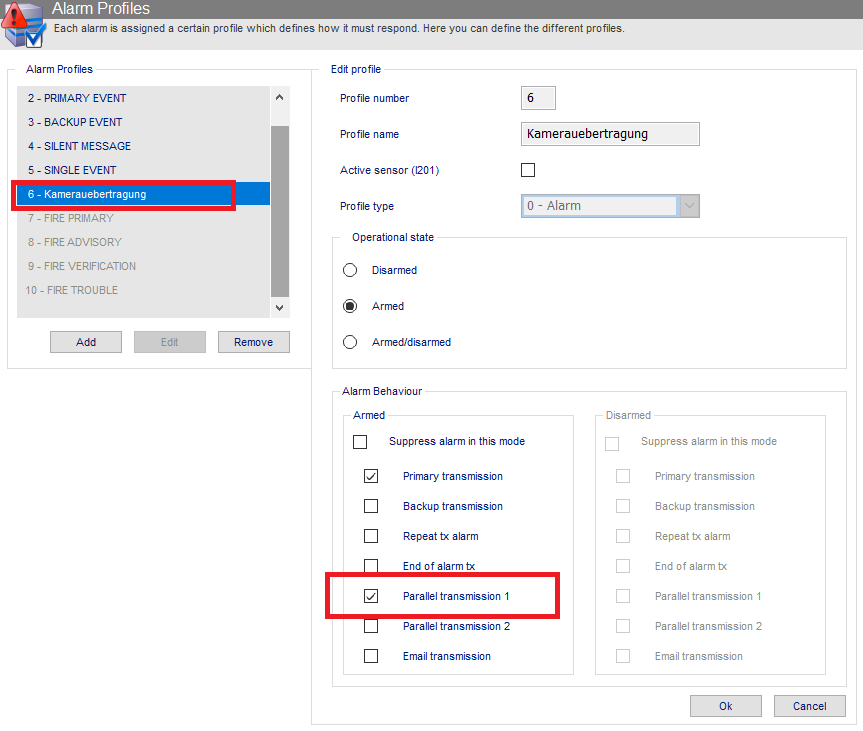

11. Navigate to Alarm Profiles Behavior. Configure the KameraAlarm profile to ensure it camera alarms pushes events to Parallel Transmission 1:


Once All the above mentioned configurations are done, you can check the Site Pulse or Camera alarms in the Eventlogs of the respective sites in Talos.
