MULTI-SCREEN PRESENTATION Plug-in

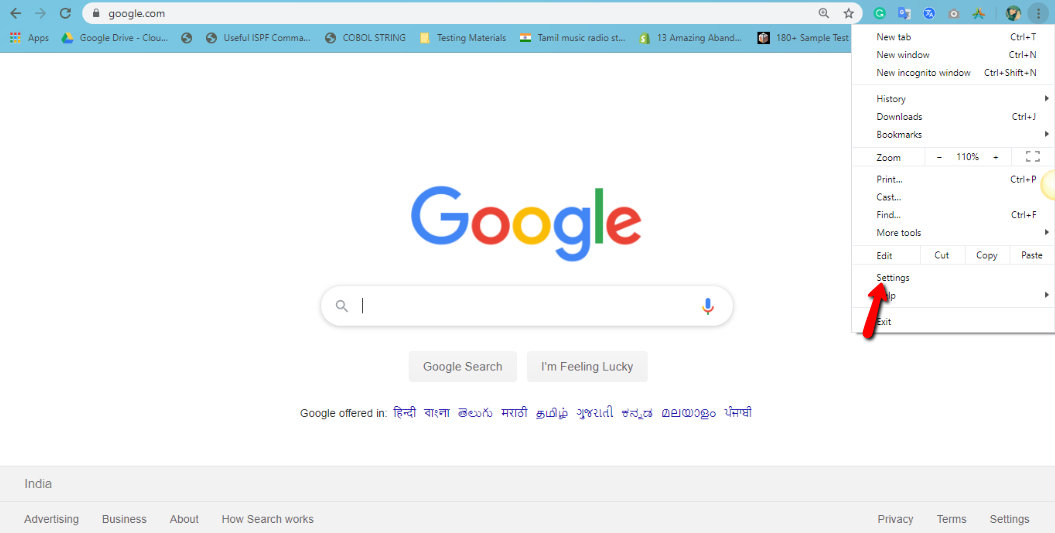

Go to Google settings

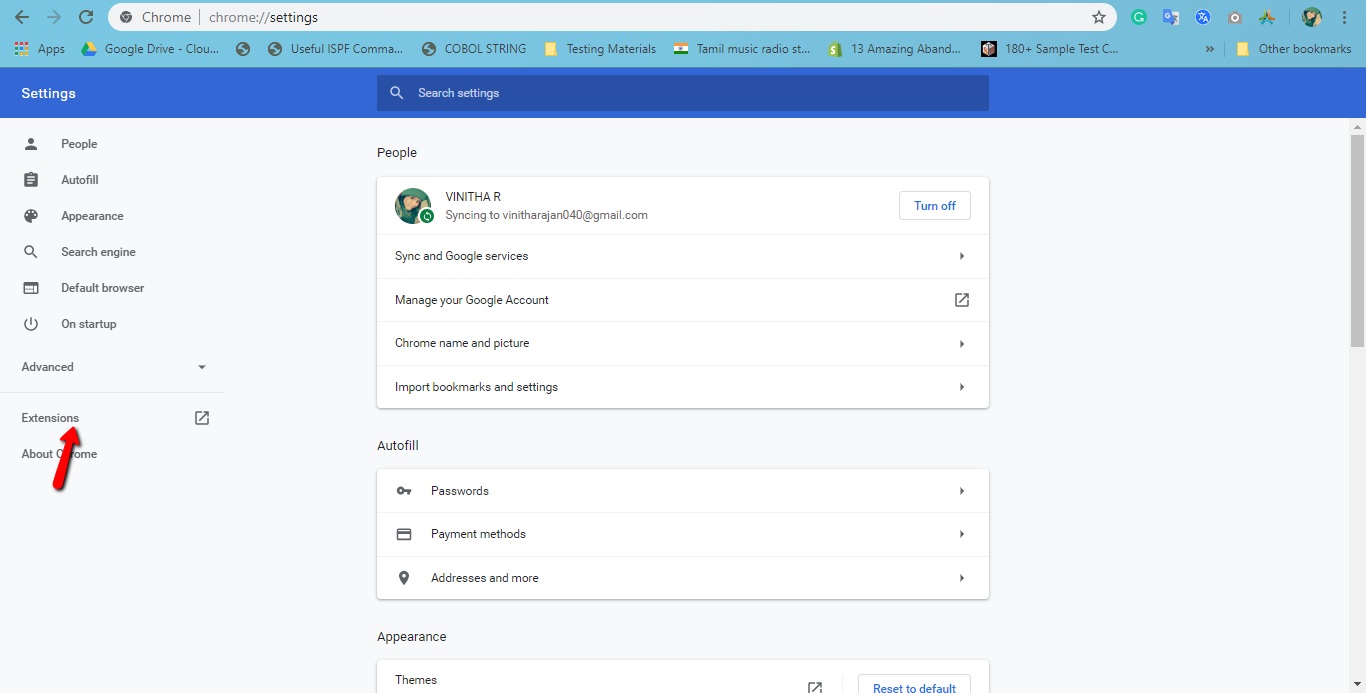

Choose Extensions from menu

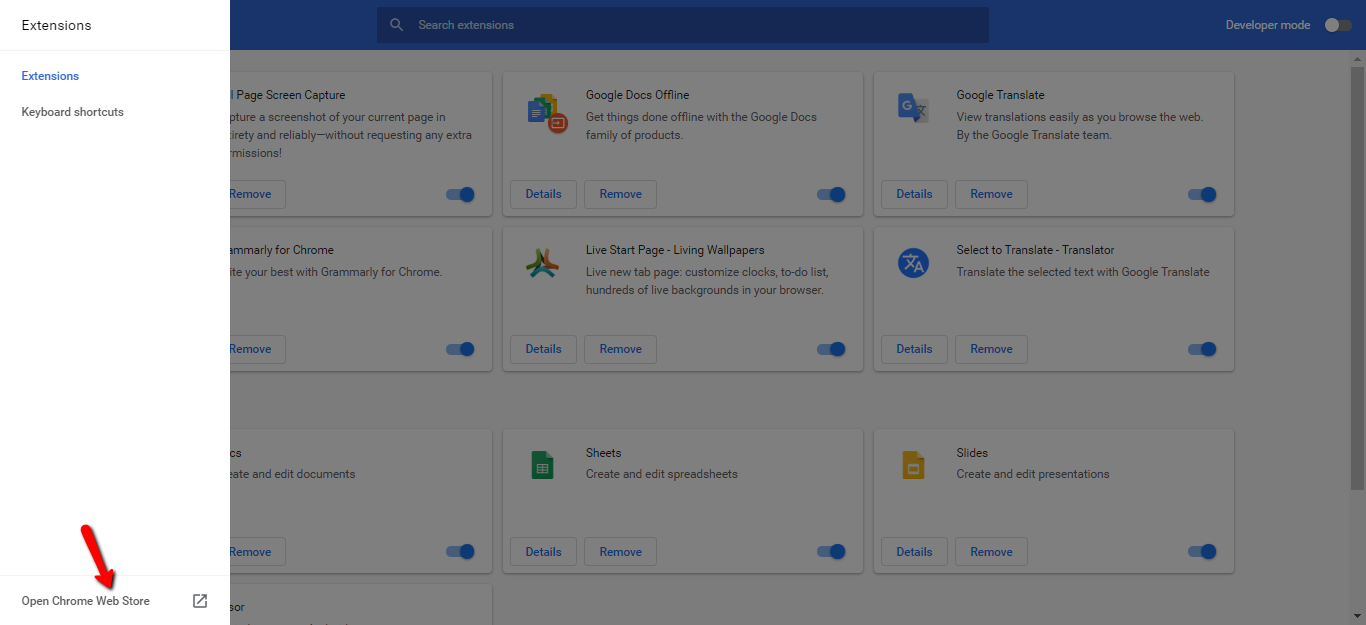

Click on Open Chrome Web Store from which is on bottom of the extensions menu

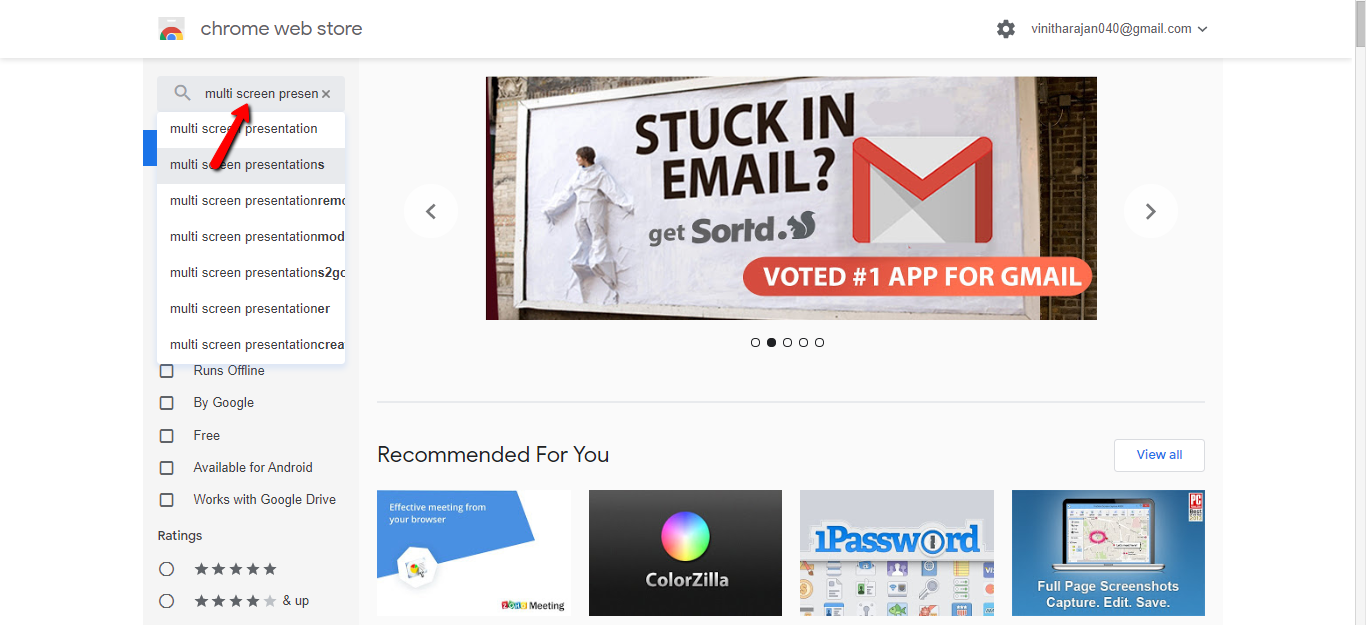

Search for Multi screen presentation in Chrome Web Store

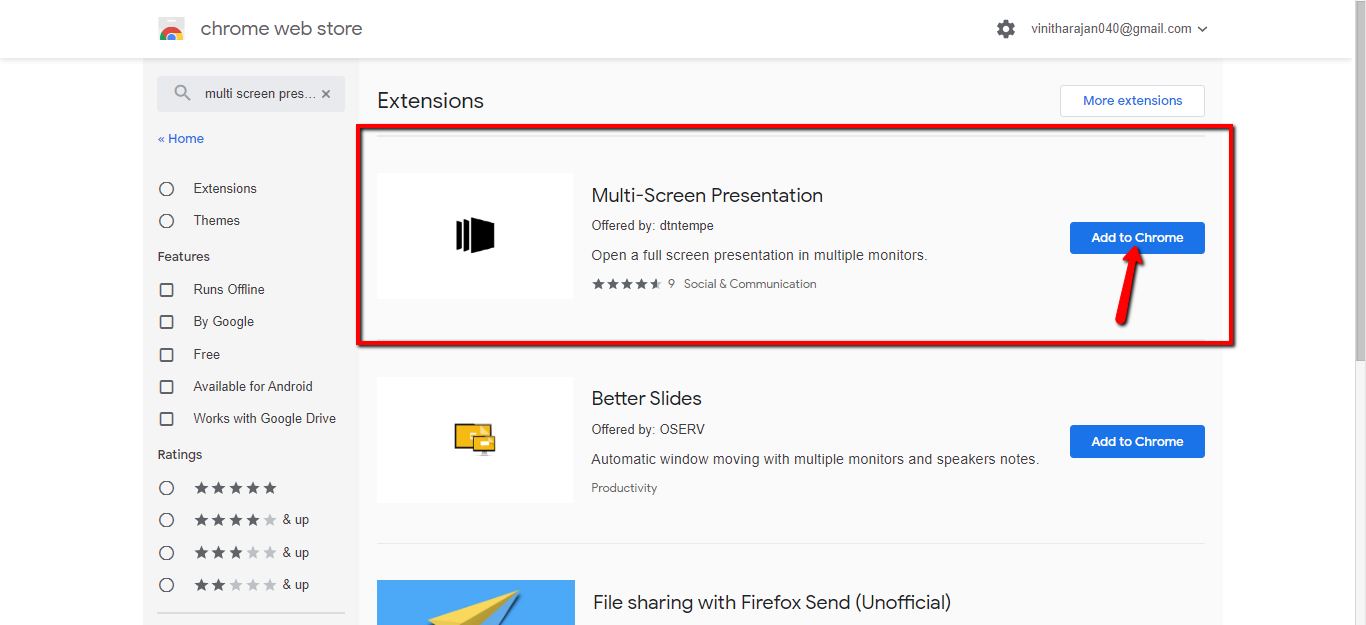

Choose Multi-Screen Presentation (which shown in the below picture) plug-in to add in Chrome browser


Click on Add to Chrome

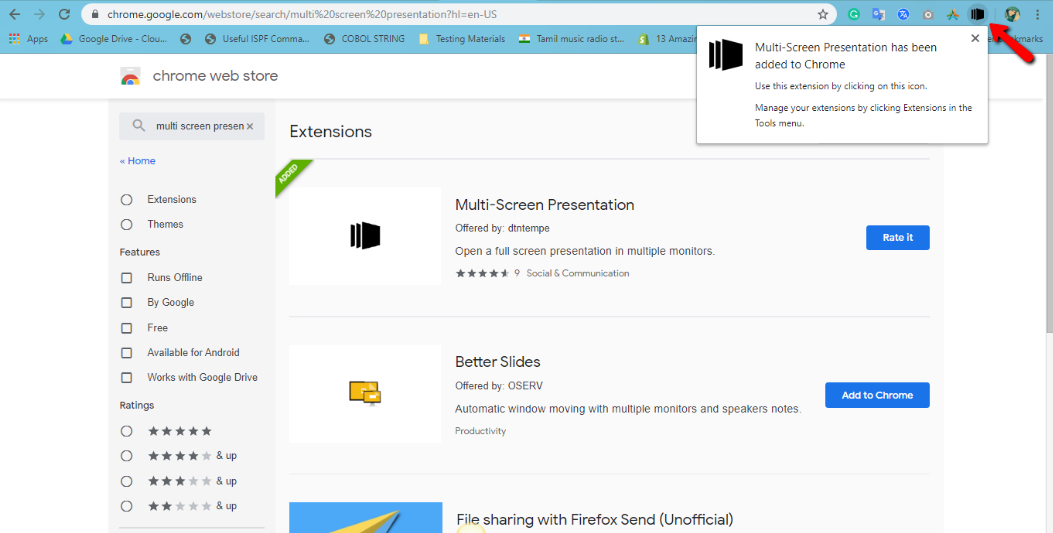

Plug-in added to the browser as an extension

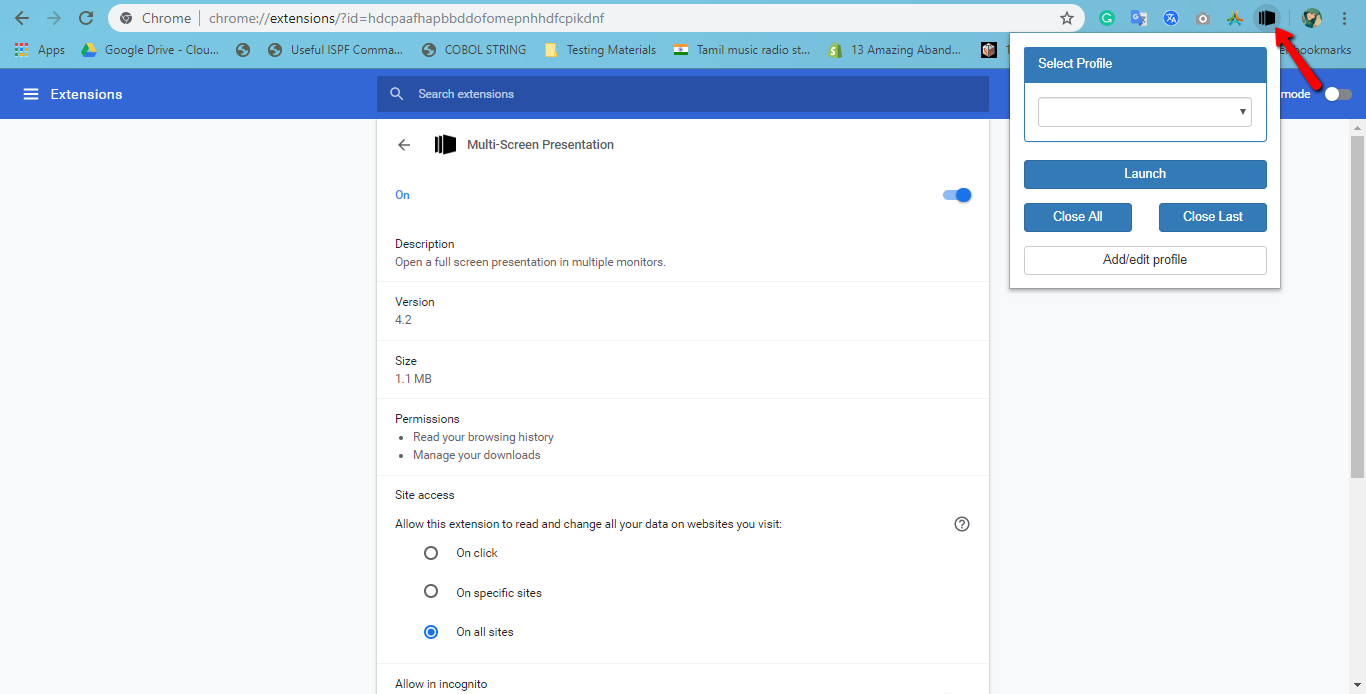

Click on the plug-in symbol to open the Select Profile window





Click on Add/edit profile to add a profile into the plug-in (if the wished profile doesn’t exist)

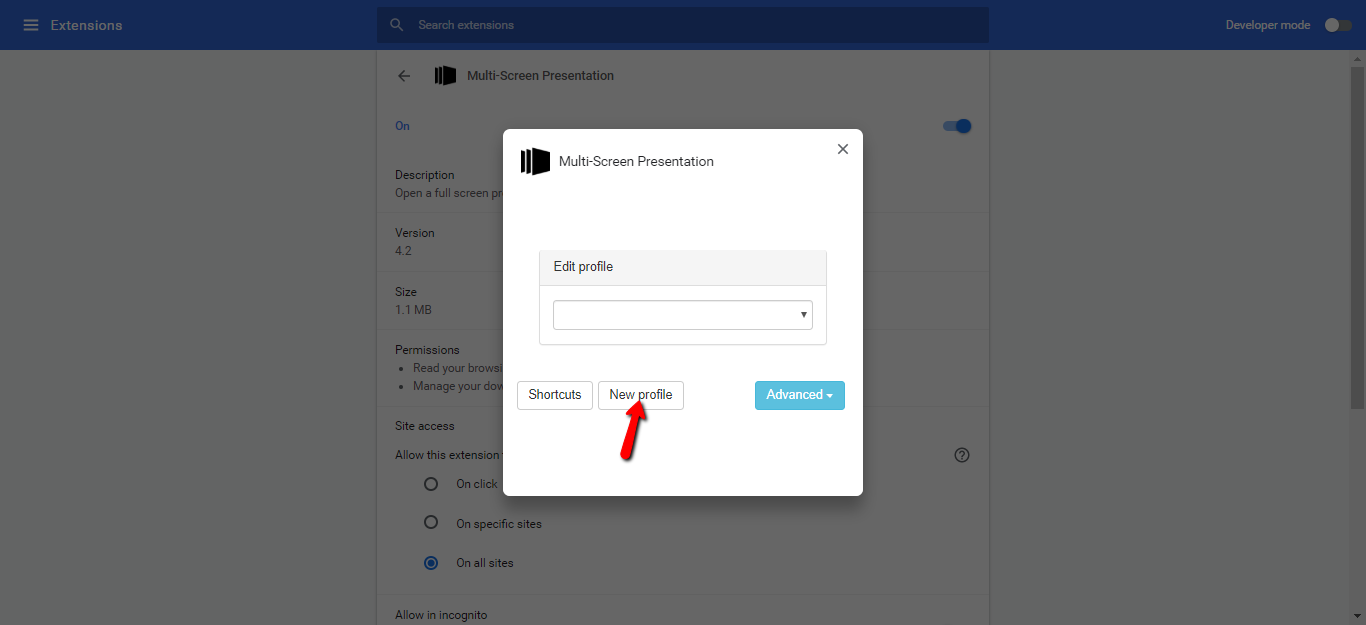

Choose New profile

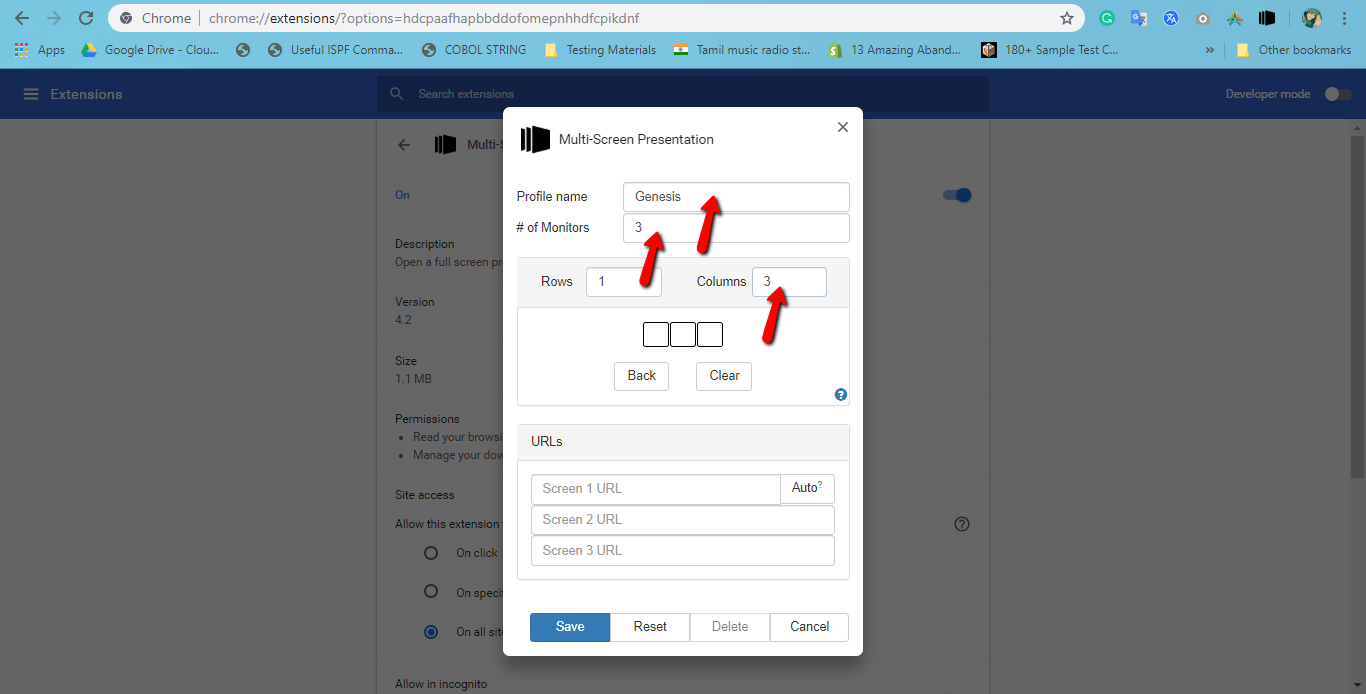

Give a name under Profile name, enter the wished total amount of screens as # of Monitors, amount of rows (vertically aligned screens) and columns (horizontally aligned screens) in Rows and Columns

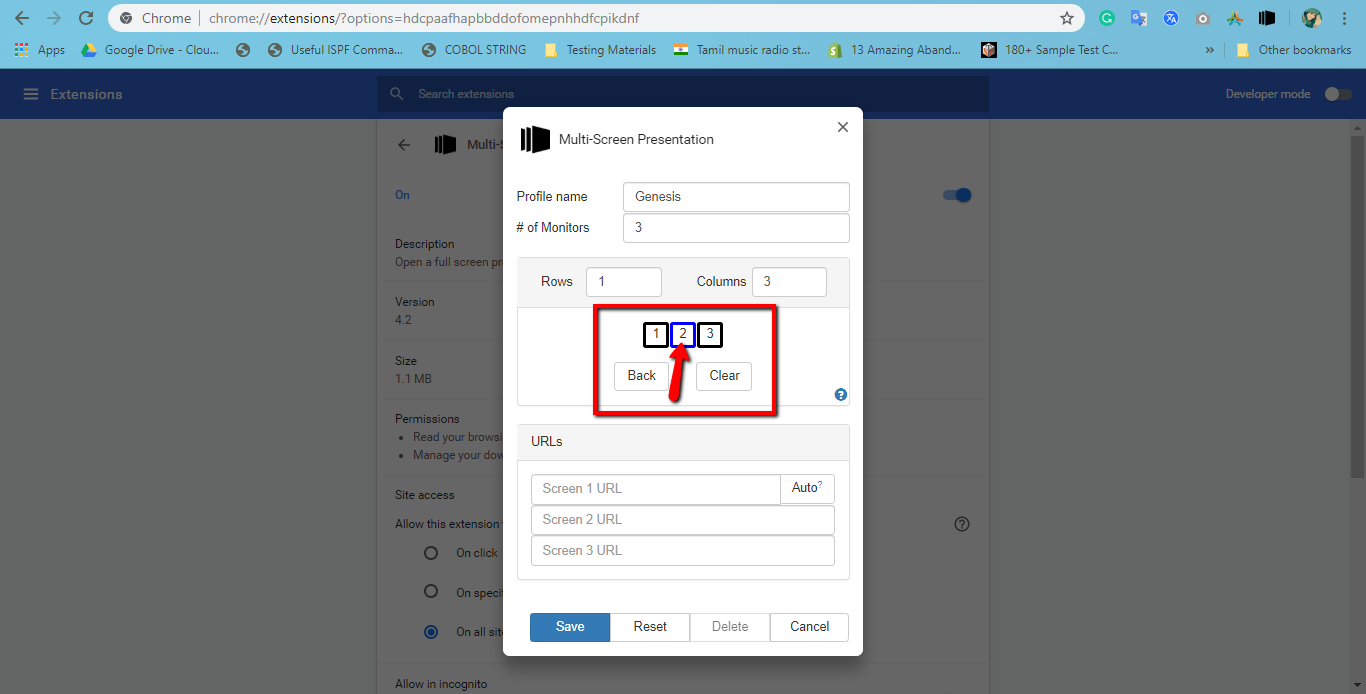

The amount of the screens will be displayed as entered. Double-tap to choose the primary screen/window (double tapped screen will be outlined blue to denote) and single-tap to choose additional screen (will be on the black thick border)




Enter the URL of the page in the respective column where it shall be displayed. Click the Save to save the profile one it is done

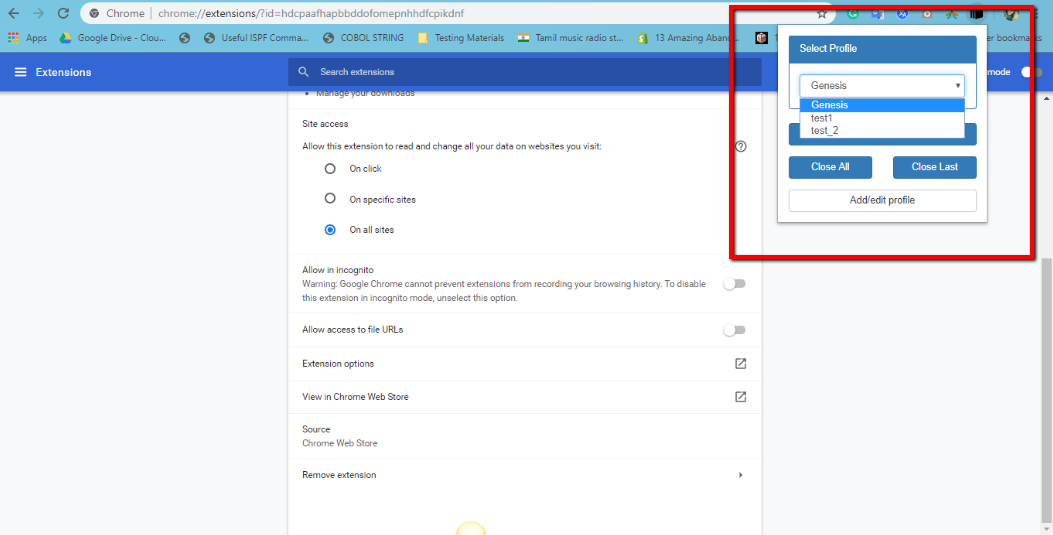

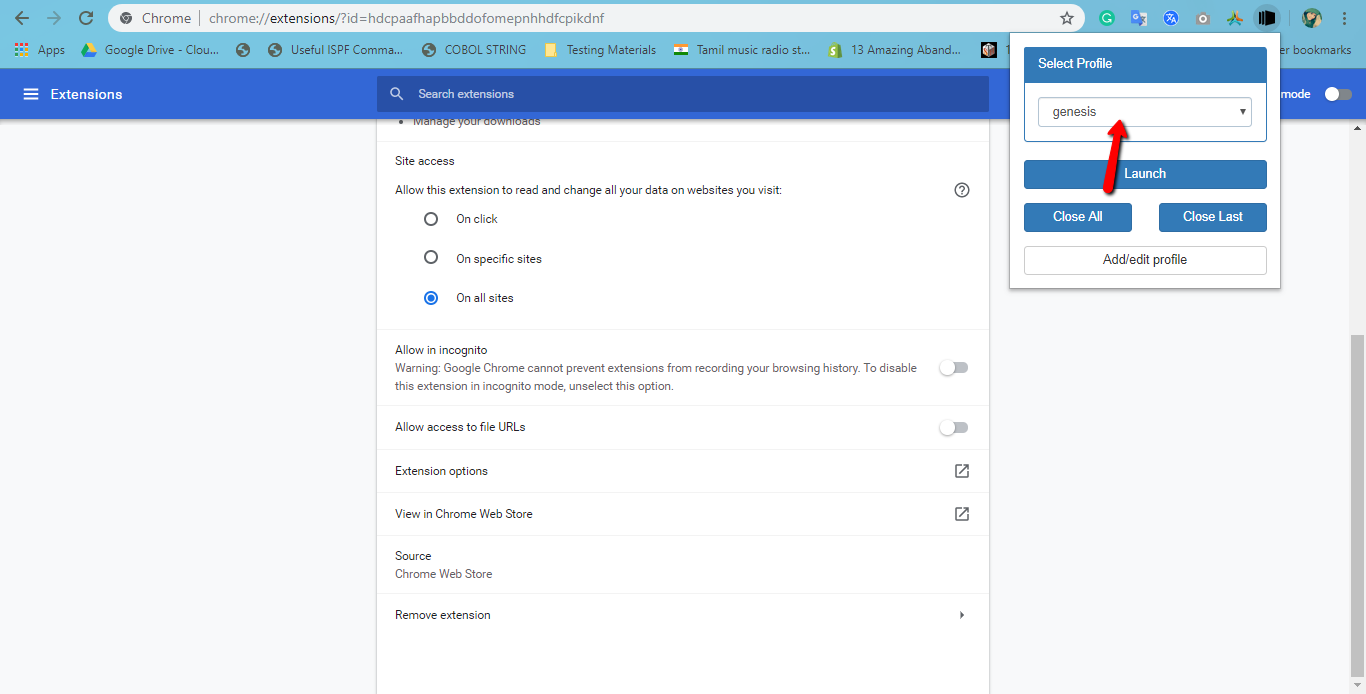

The available profile will be displayed on the extension’s dropdown menu.

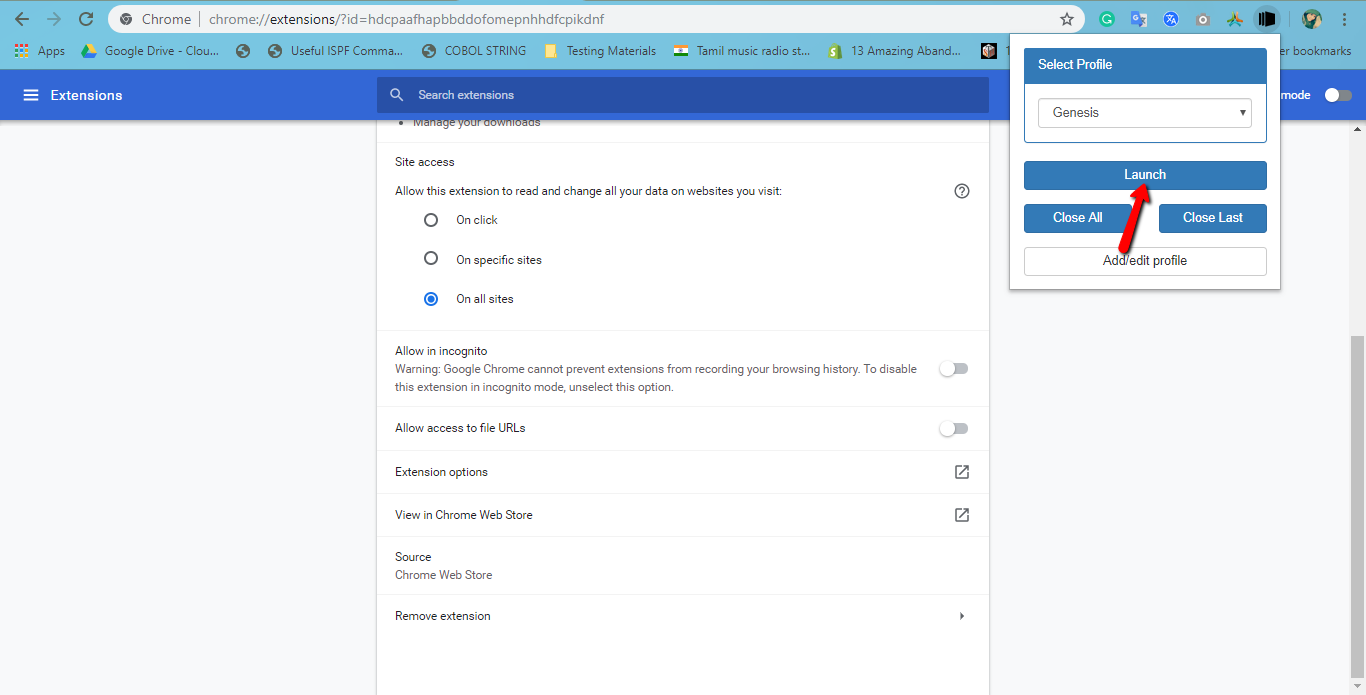

Click on Launch

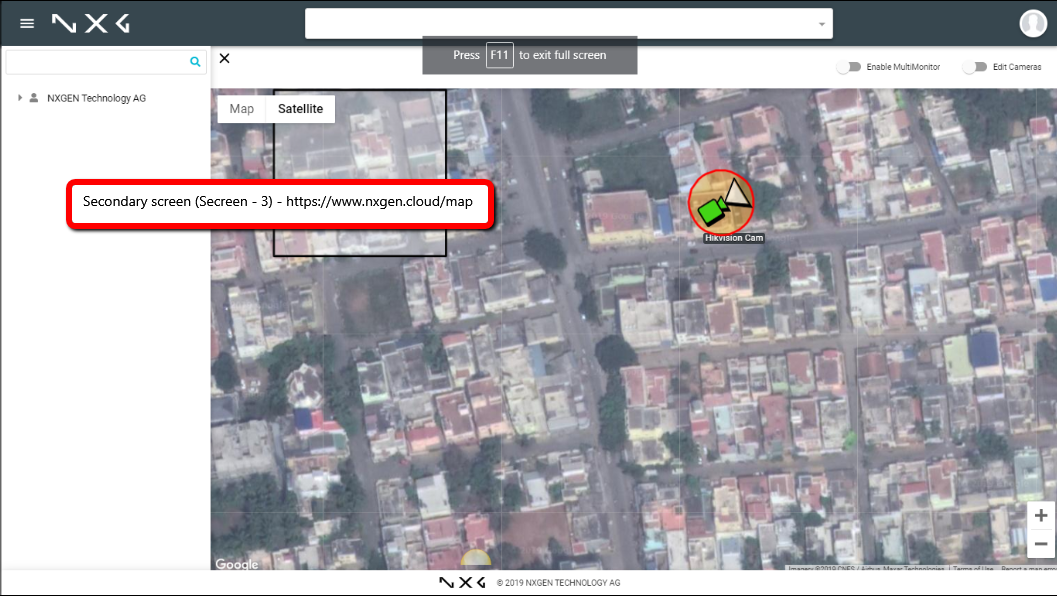

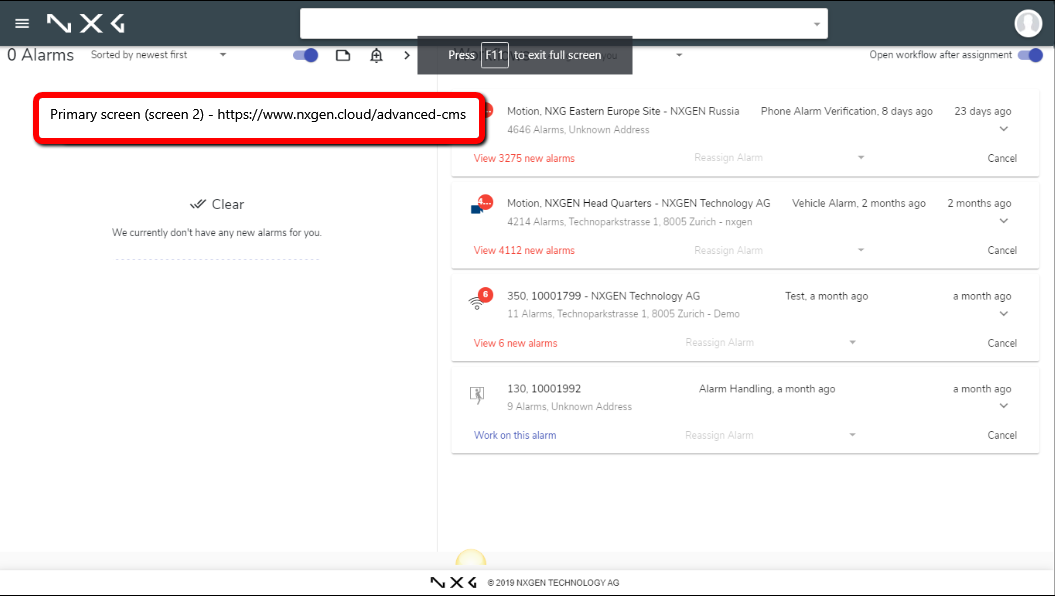

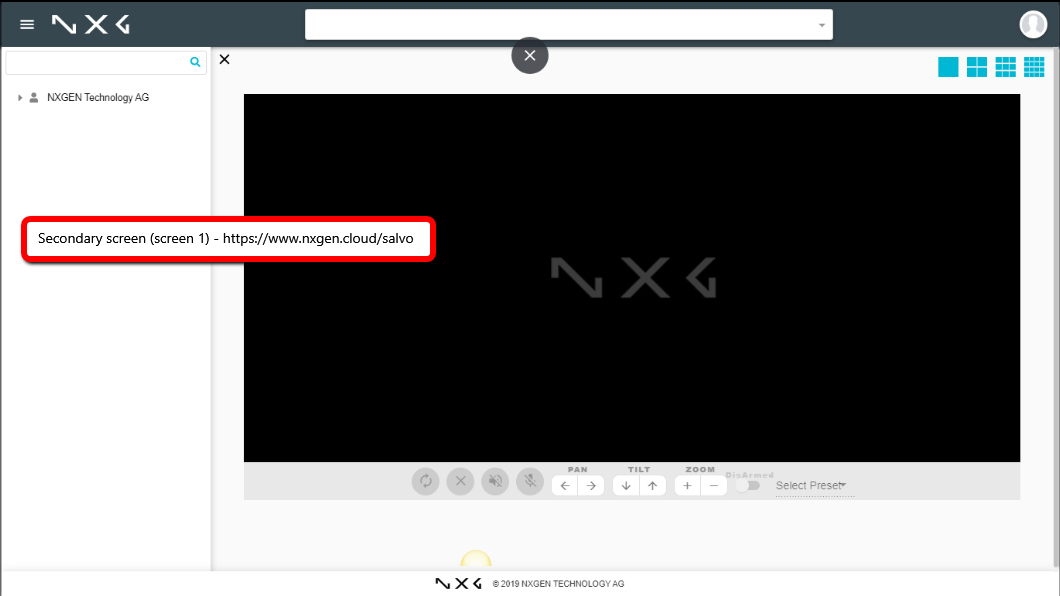

Once Launch clicked, the screens will open in full screen view (in our example 3 screens as below)


.




Click on Add/edit profile

To import the defined profile, click on the extension' symbol

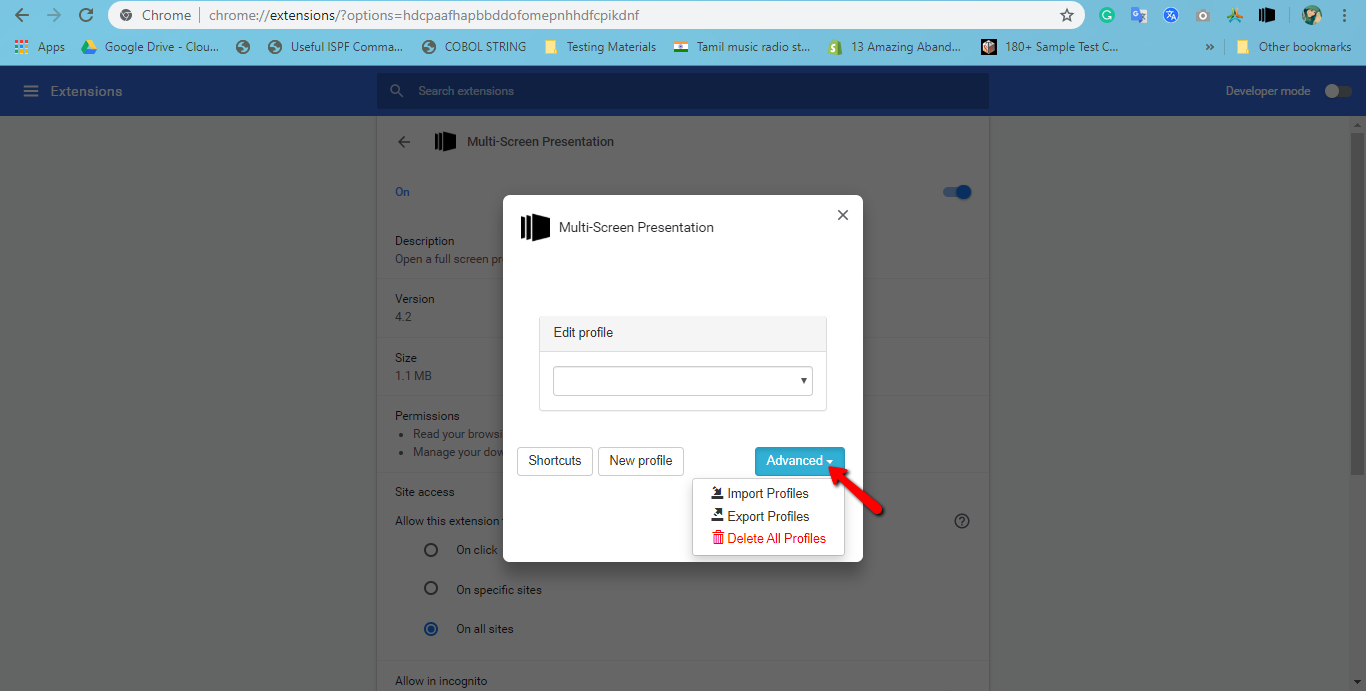

Click on Advanced to get the available options and select Export Profiles or Import Profiles to export or import

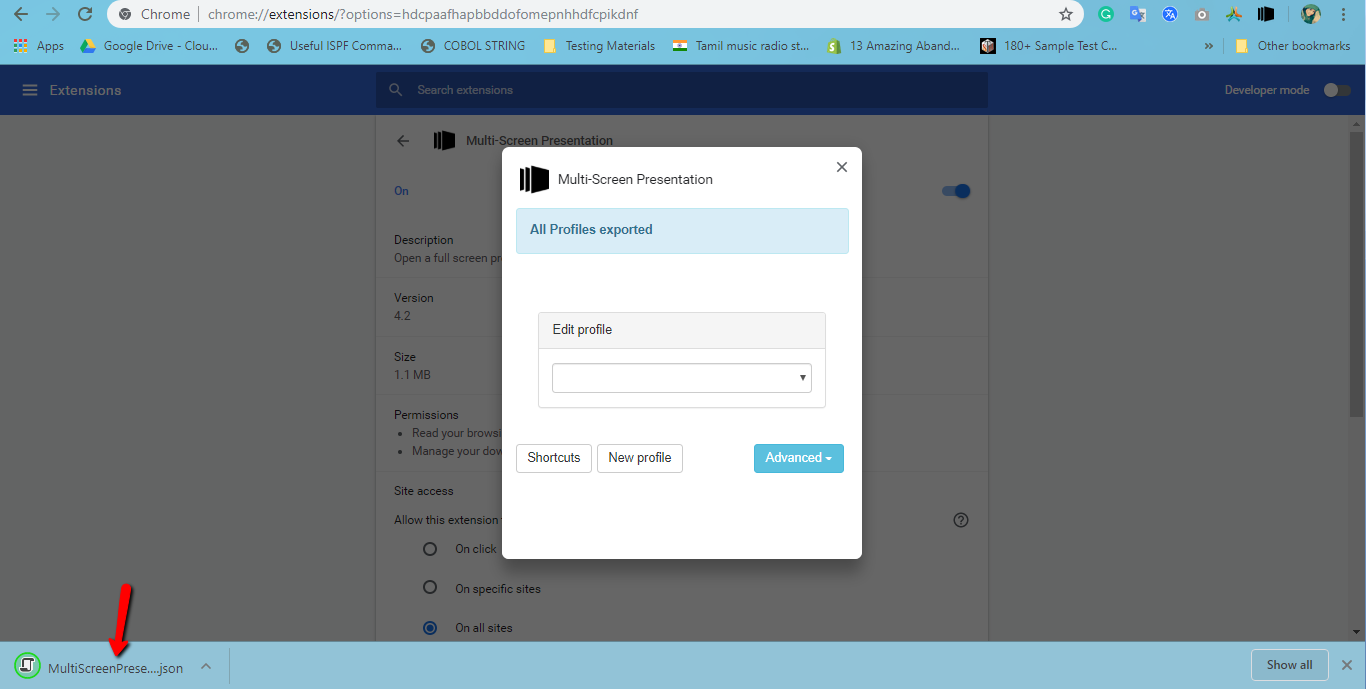

By clicking on Export Profiles, the profile(s) will be exported as a „.json“ file

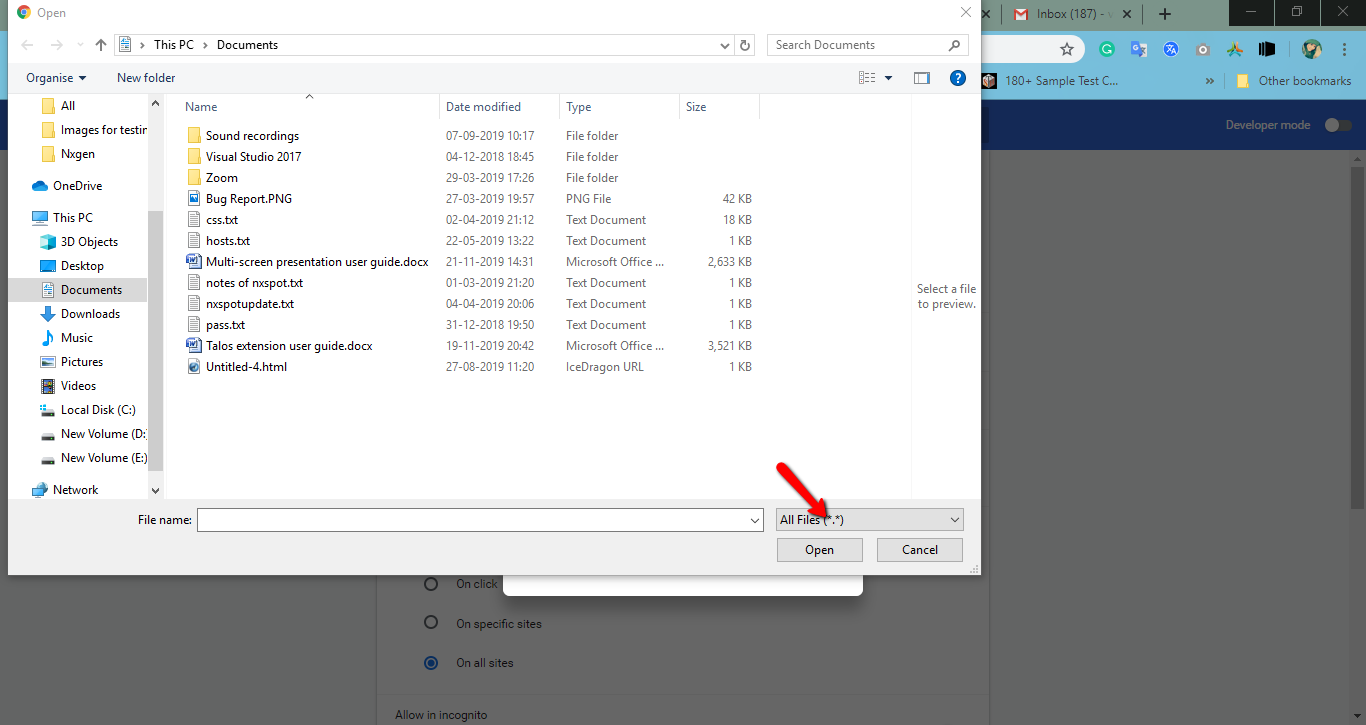

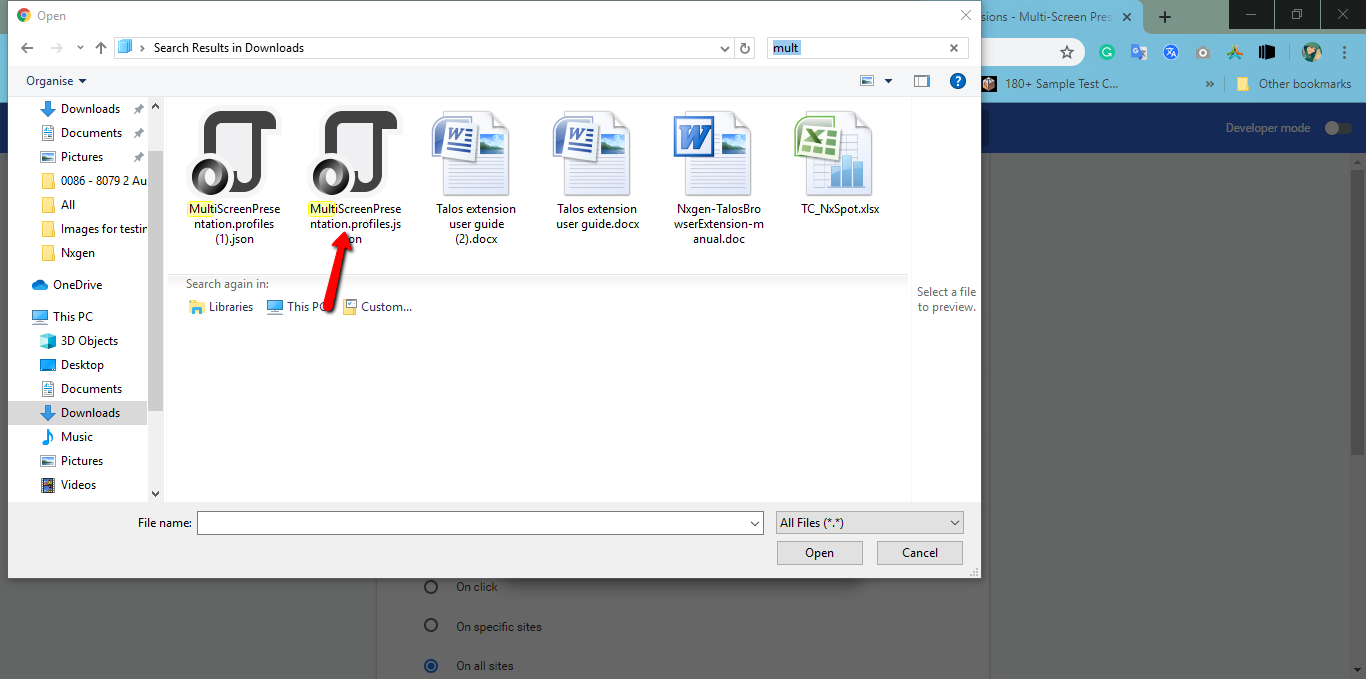

Select All files (*.*)




Click on Import Profile to export???? as „.json“ file

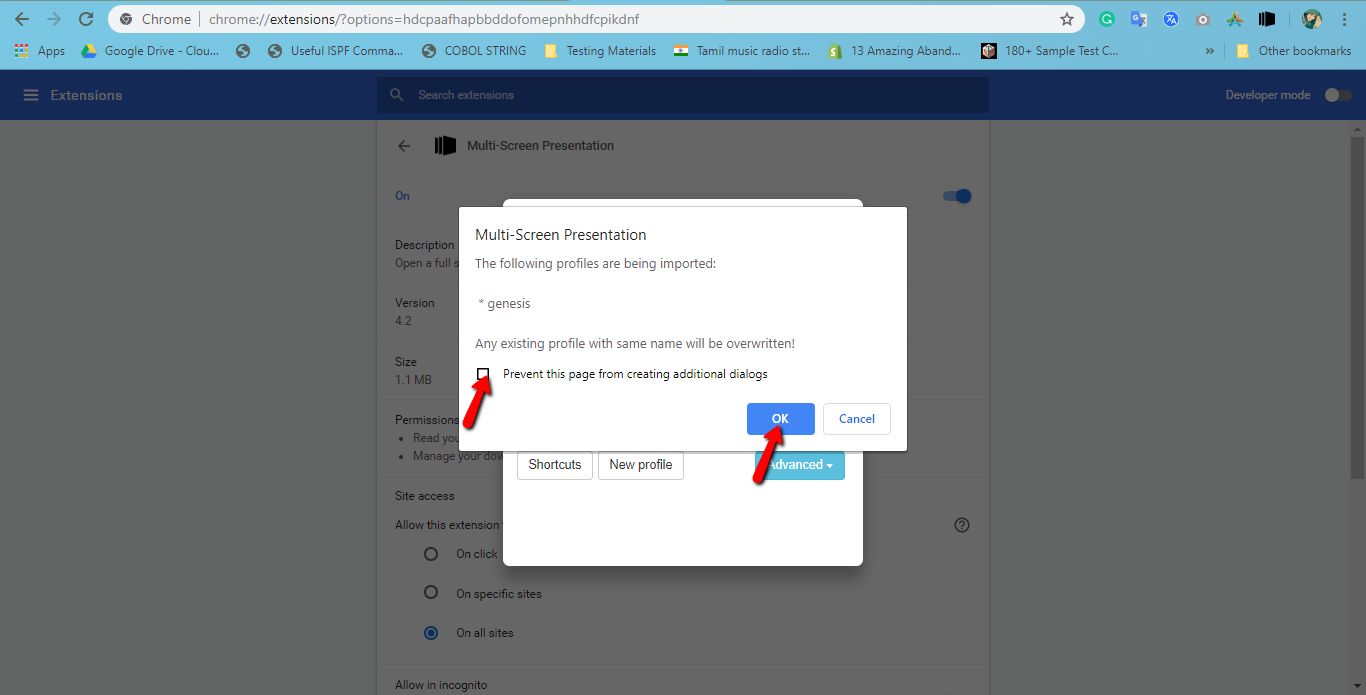

Tick the marked checkbox and click OK



The imported profile will be added to the Multi-Screen Presentation extension of the other working desk.
