Avigilon SDK Integration

Avigilon SDK Integration in Genesis:

Step 1: Login to the webclient of the device in the browser

Step 2: Validate the following settings of the device

 1: Add Avigilon SDK Parameters to Genesis:
Parameter Type: string
Parameter Name: Avigilon_Device_Custom_baseUrl
Parameter Value : http://avigilonsdk.nxgen.cloud:1880/

Note:  No pre requisite configuration is required on the Avigilon SDK client.

Steps to add custom property:

Step 1: Login to genesis

Step 2: Navigate to configuration app

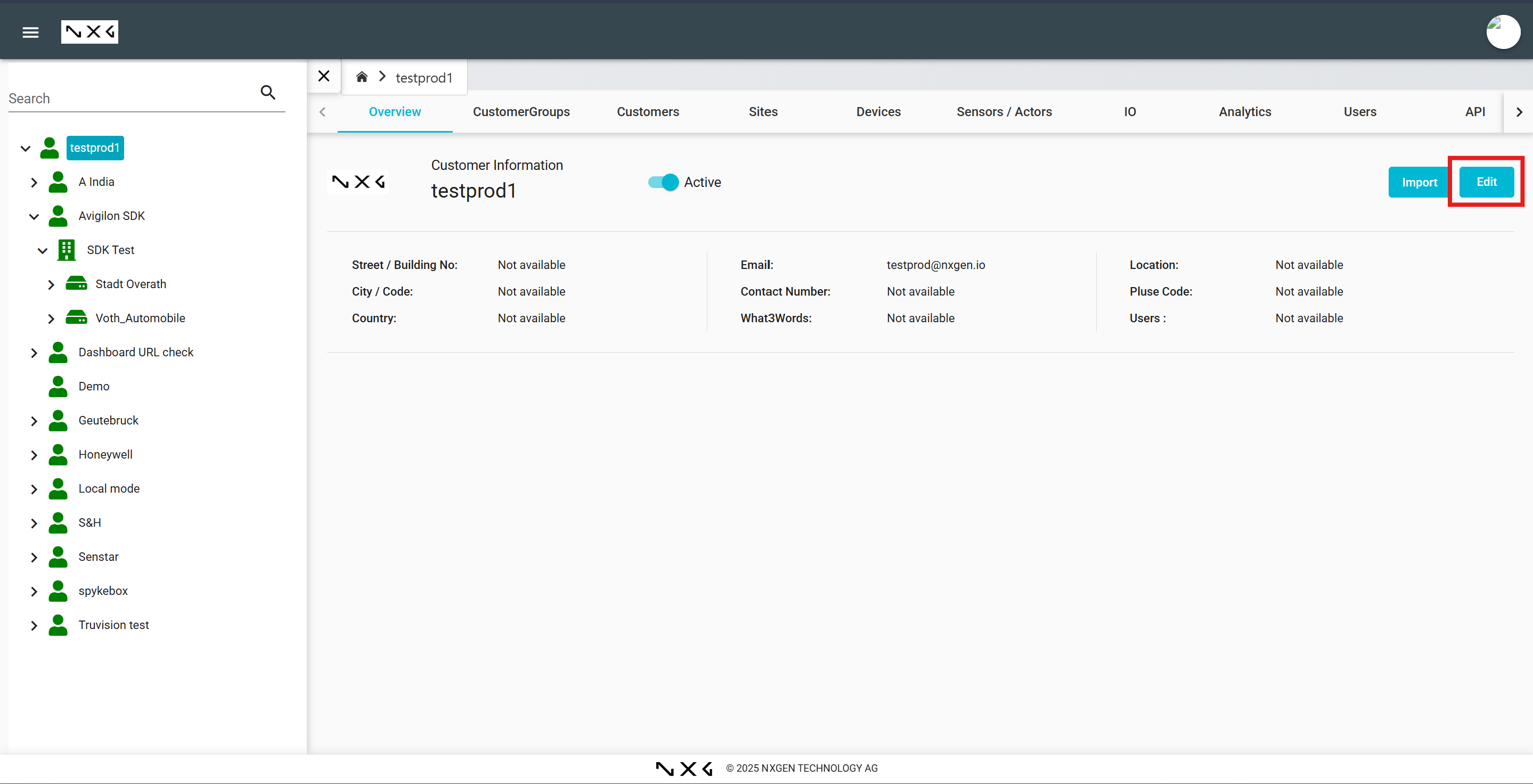

Step 3: At service provider level, click on edit button under overview tab

Step 4: Click on additional settings tab->Custom property

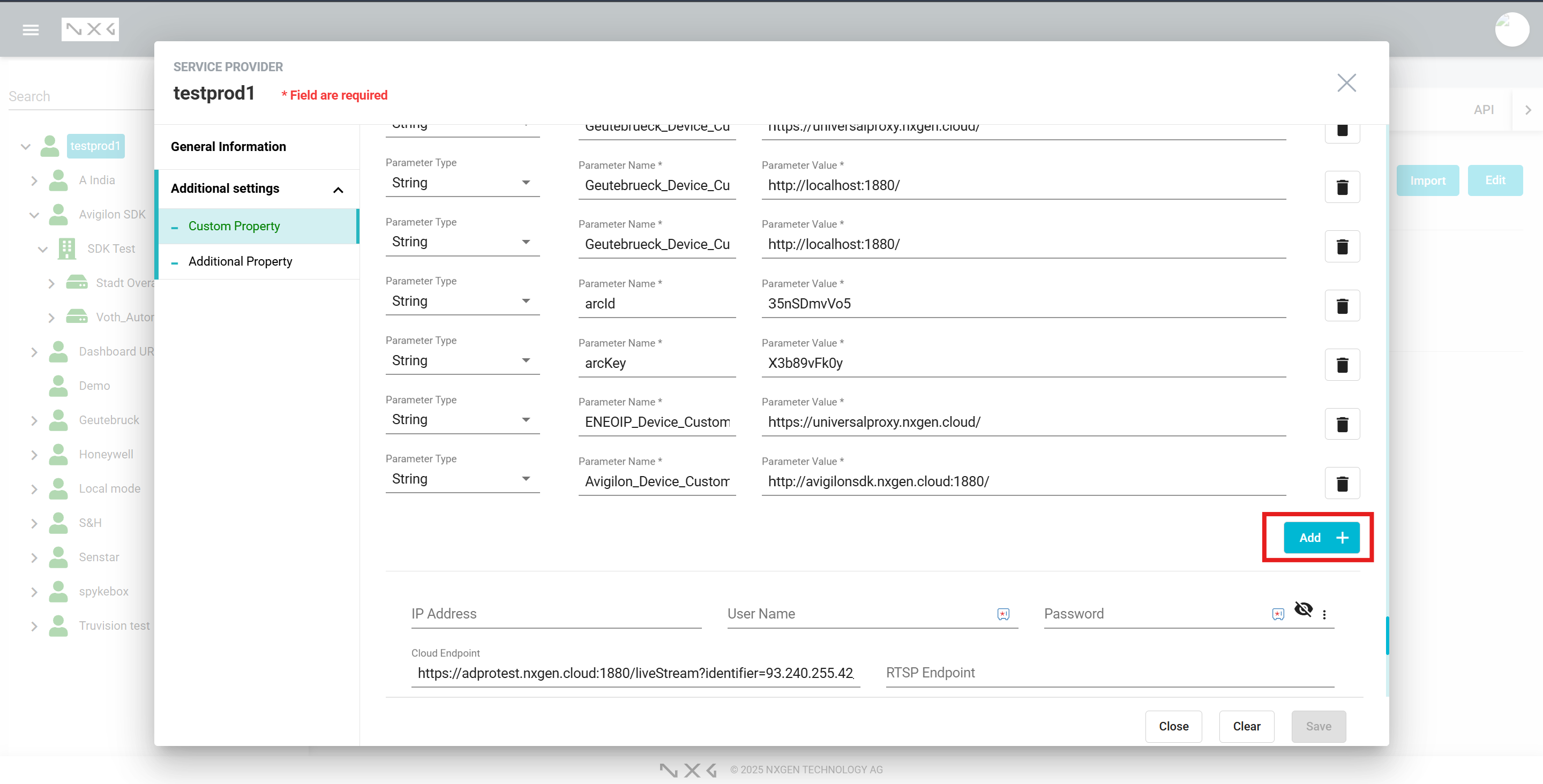

Step 5: Scroll down and click on "Add +" button

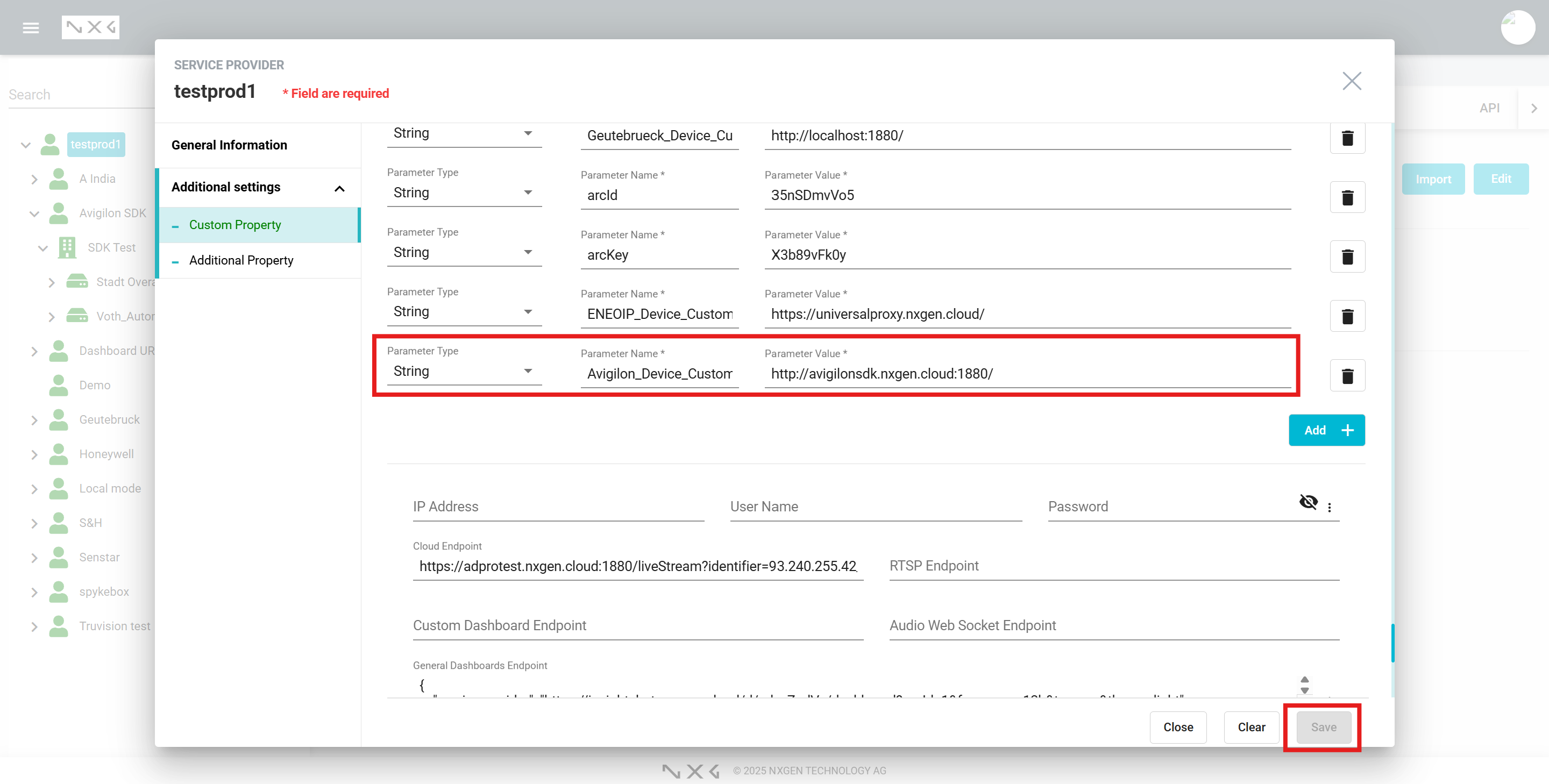

Step 6: Enter parameter name and value as mentioned above

Parameter Type: string
Parameter Name: Avigilon_Device_Custom_baseUrl
Parameter Value : http://avigilonsdk.nxgen.cloud:1880/

2: Add Avigilon Device Under the Required Site
Go to the Configuration section in Genesis.

1. Select the target site under which the Avigilon device should be registered.



Navigate to Devices → Add New Device.

Navigate to Devices → Add New Device.

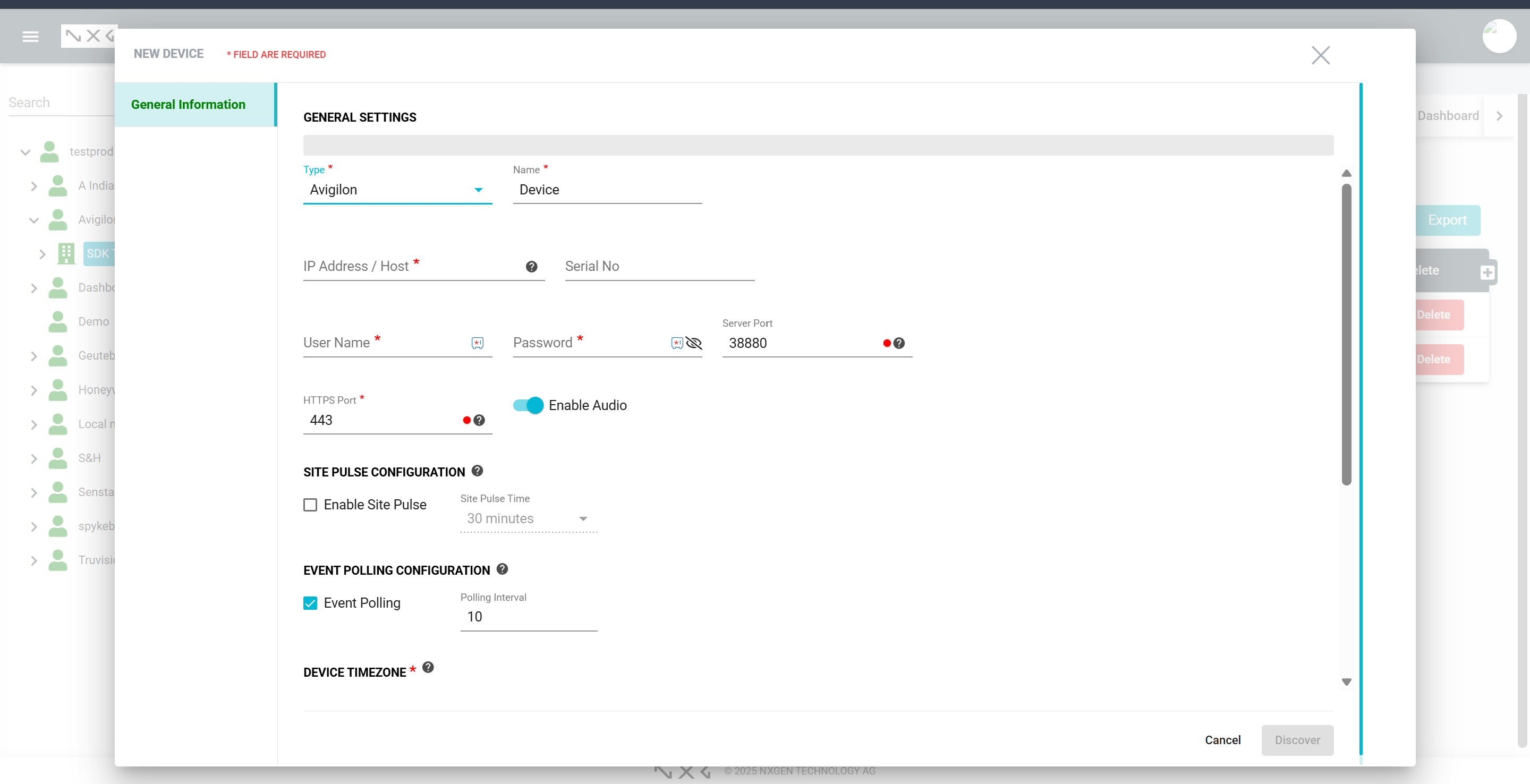

2. Fill in the following details:

• Device Name: Avigilon Device


• IP Address/Host: xxx.xxx.xxx.xx


• Username: xxx


• Password: xxx


• Server port: xxx

  Note: Https port is not required to connect the stream via SDK flow. Ensure the field is left empty

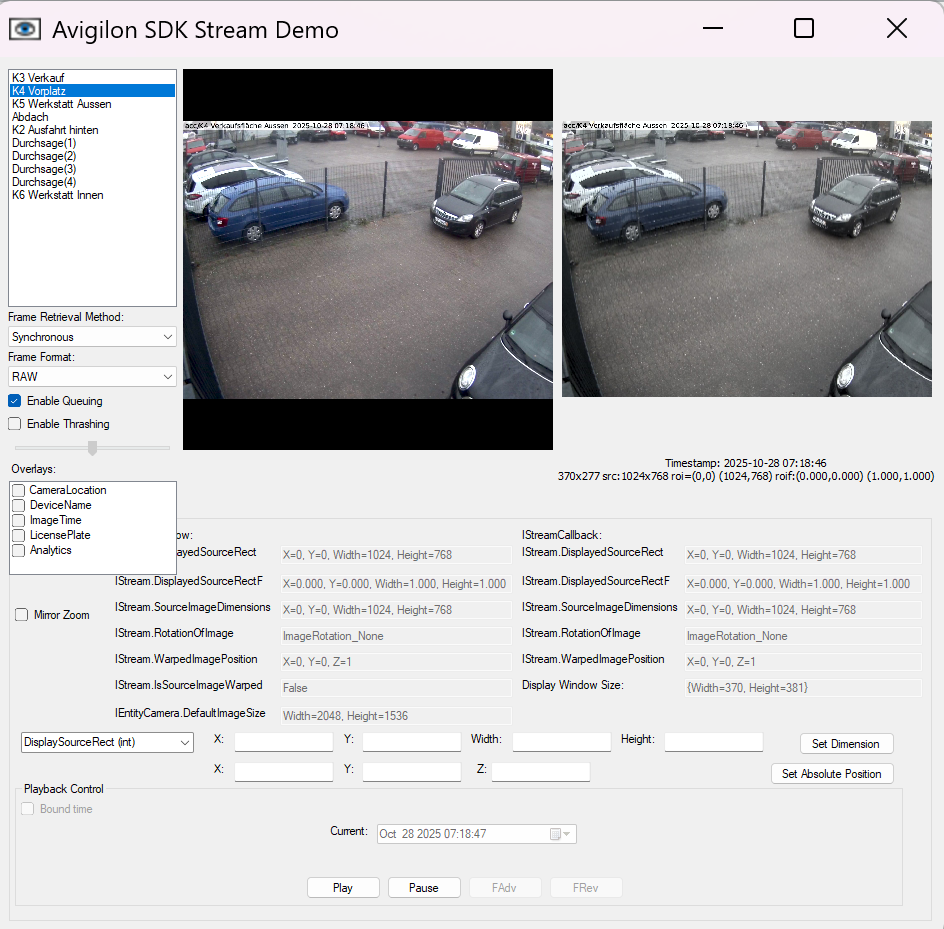

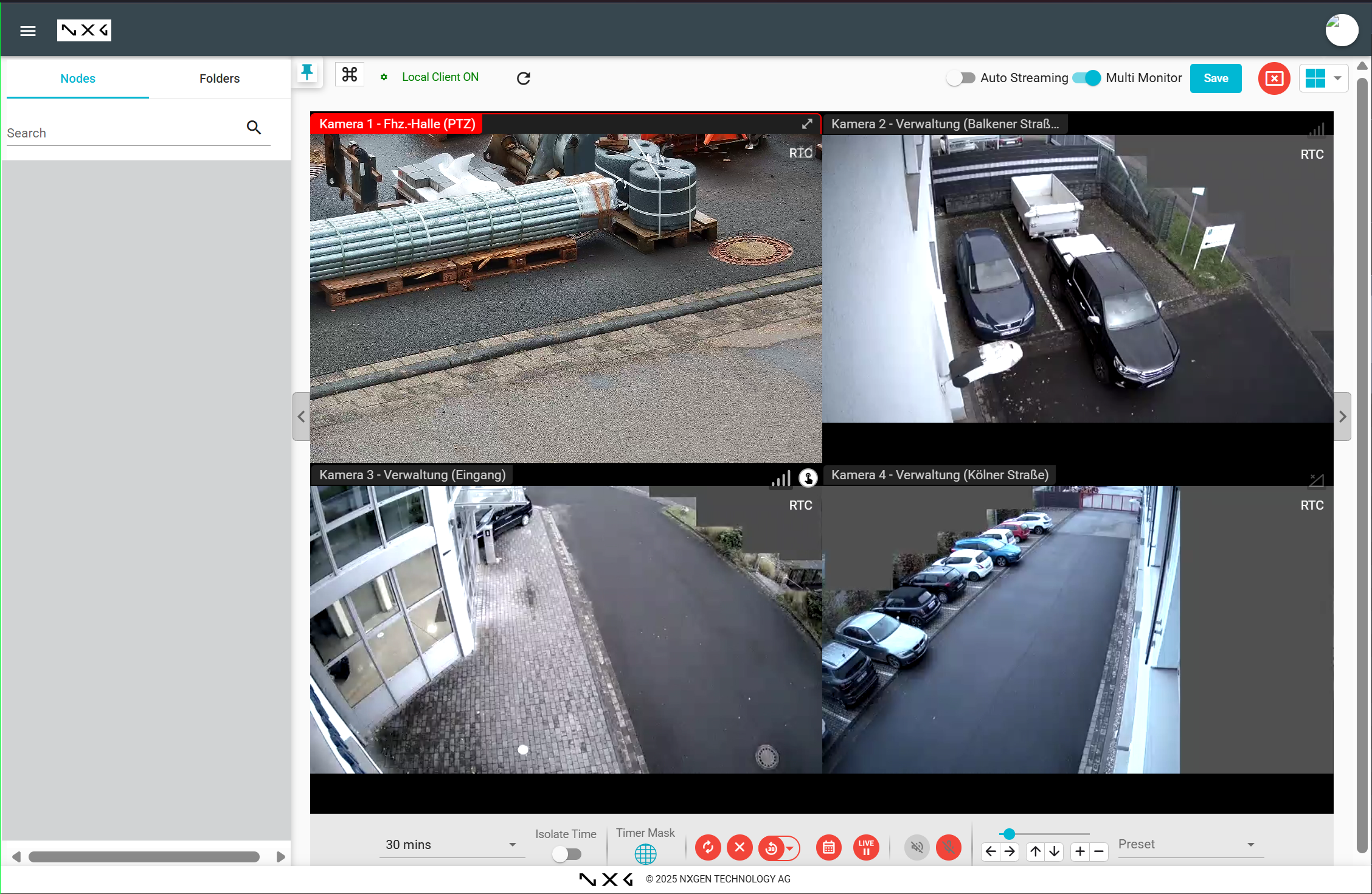

Live Stream:

Functionalities Supported in Avigilon SDK:

-->Discovery

-->Live and Playback Streaming

-->PTZ and Preset

-->Audio

-->Events sdk based along with quad snapshot.
Note: Events Not able to test(No test device)
