Genesis Multimonitor Plug-In

Genesis Multimonitor Plug-In

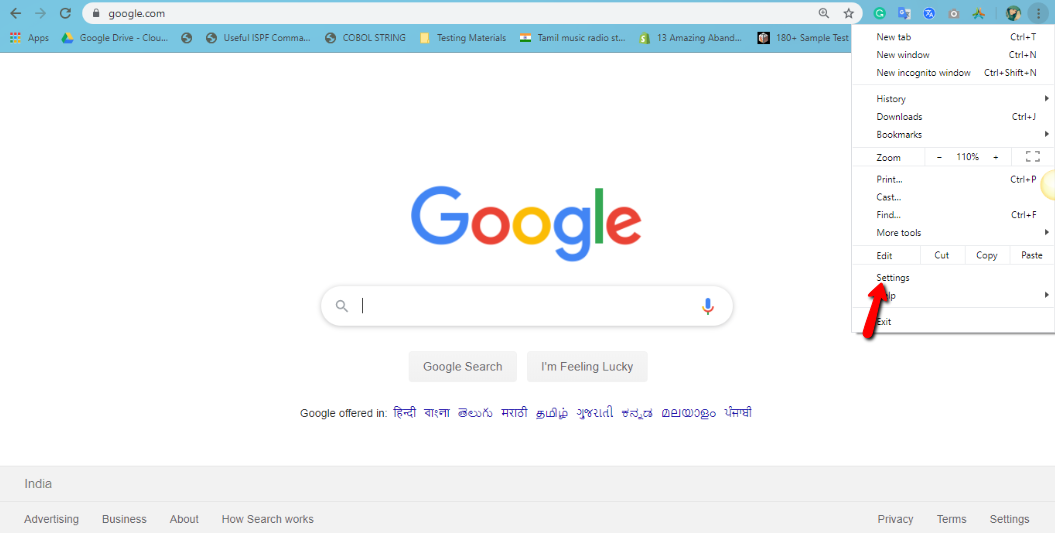

Go to Google settings

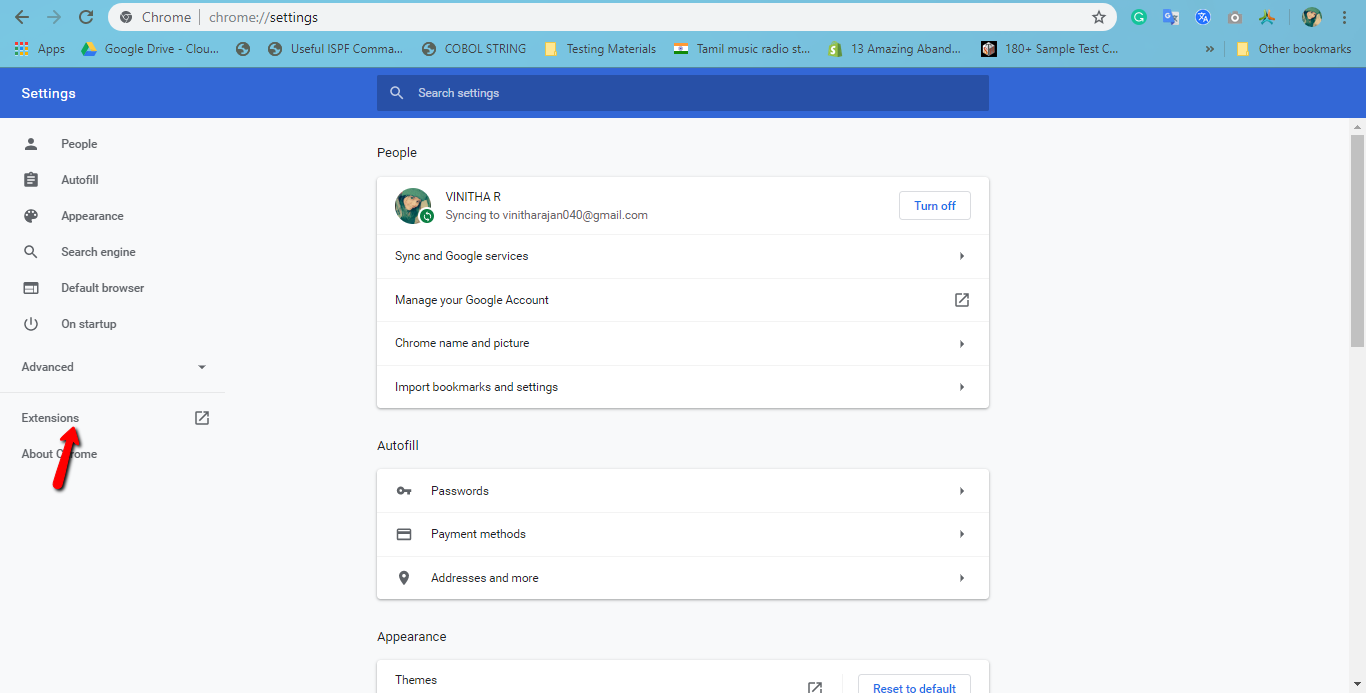

Choose Extensions from menu

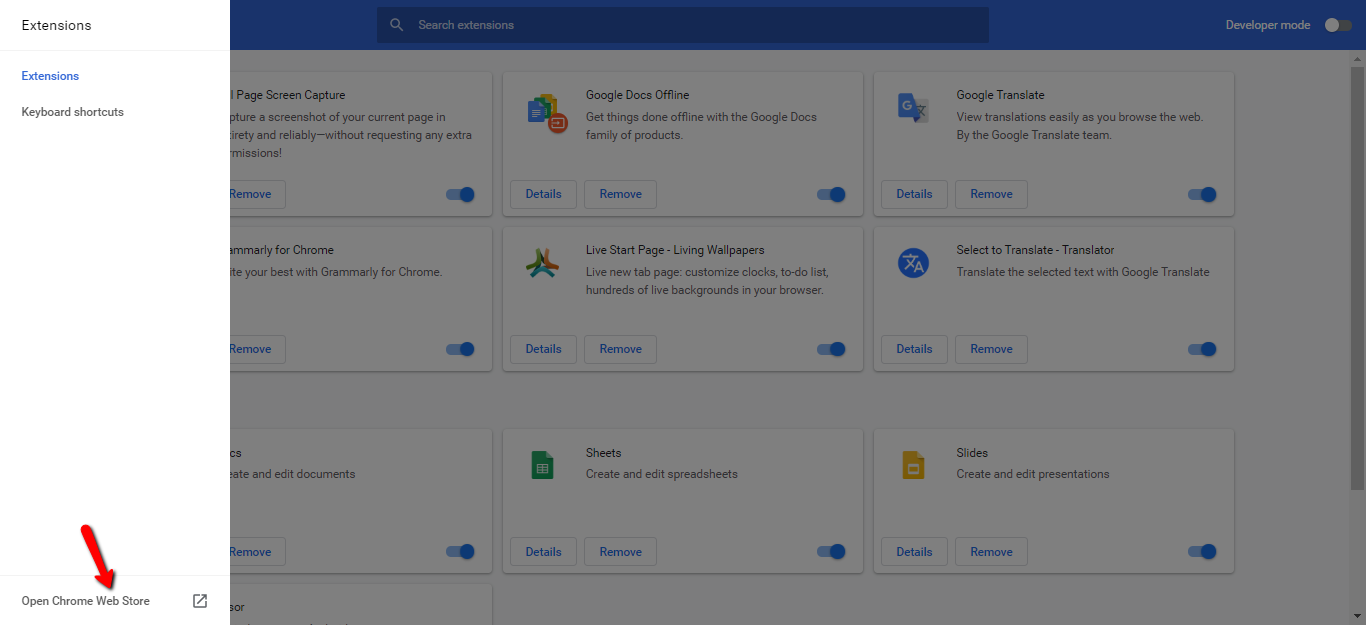

Click on Open Chrome Web Store from which is on bottom of the extensions menu

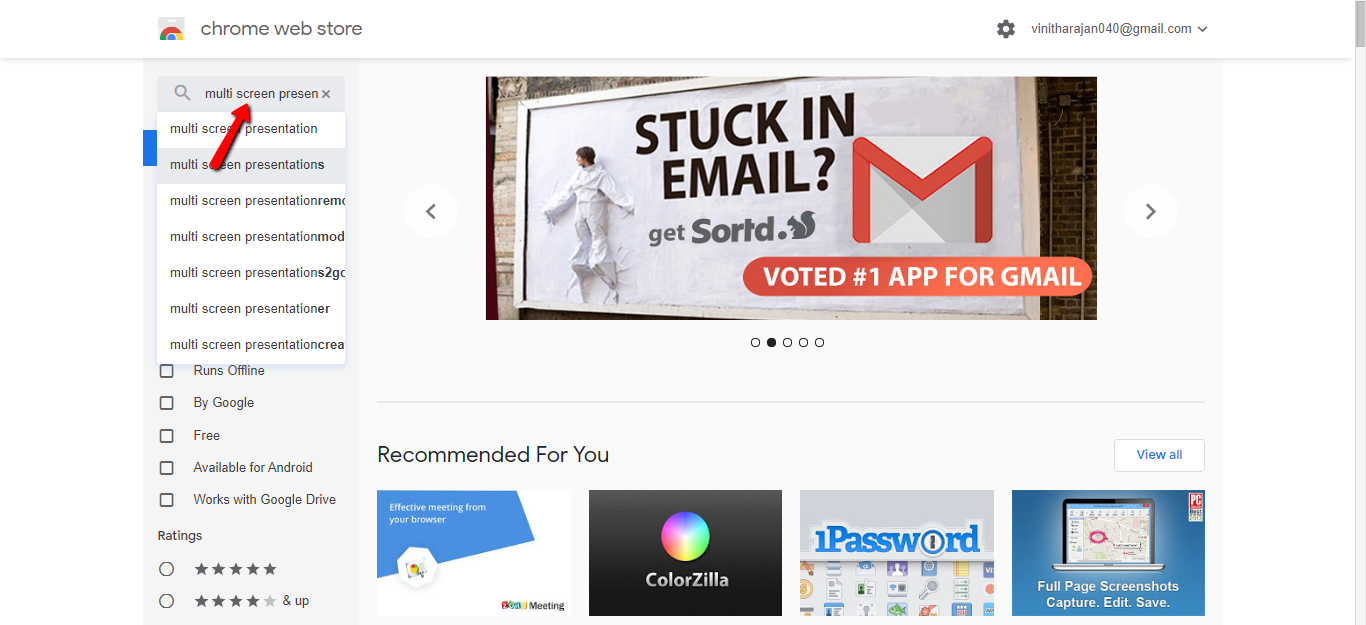

Search for Multi screen presentation in Chrome Web Store

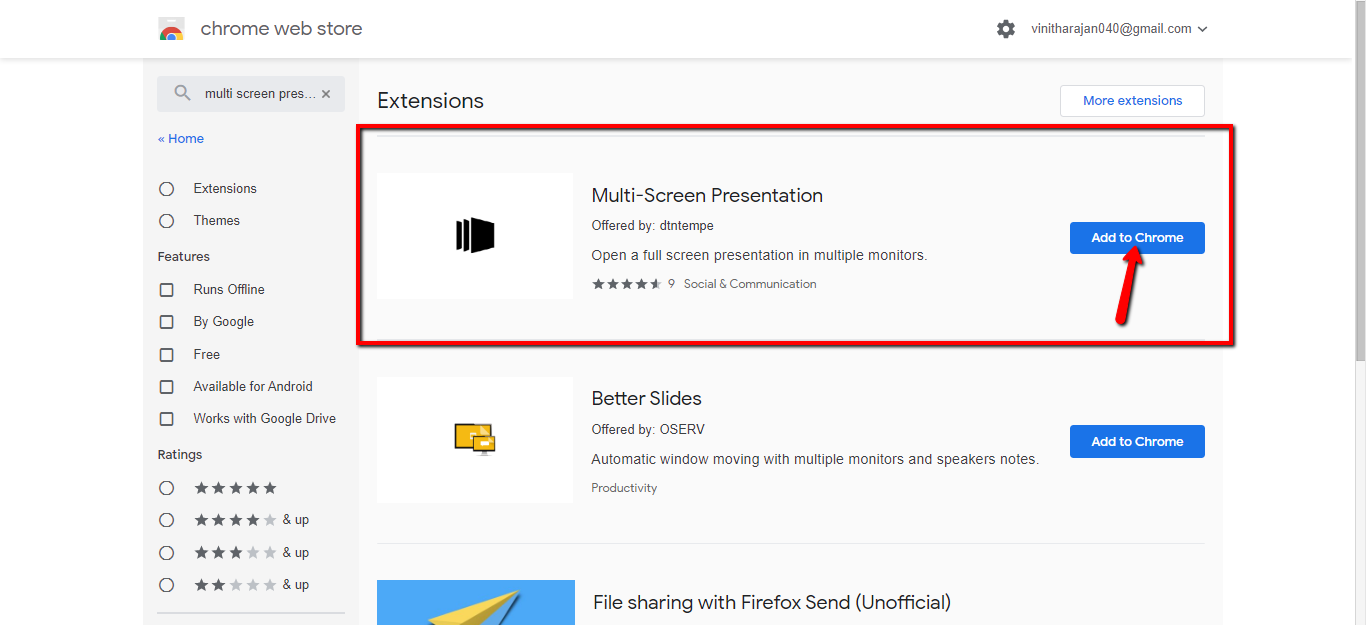

Choose Multi-Screen Presentation (which shown in the below picture) plug-in to add in Chrome browser

Click on Add to Chrome

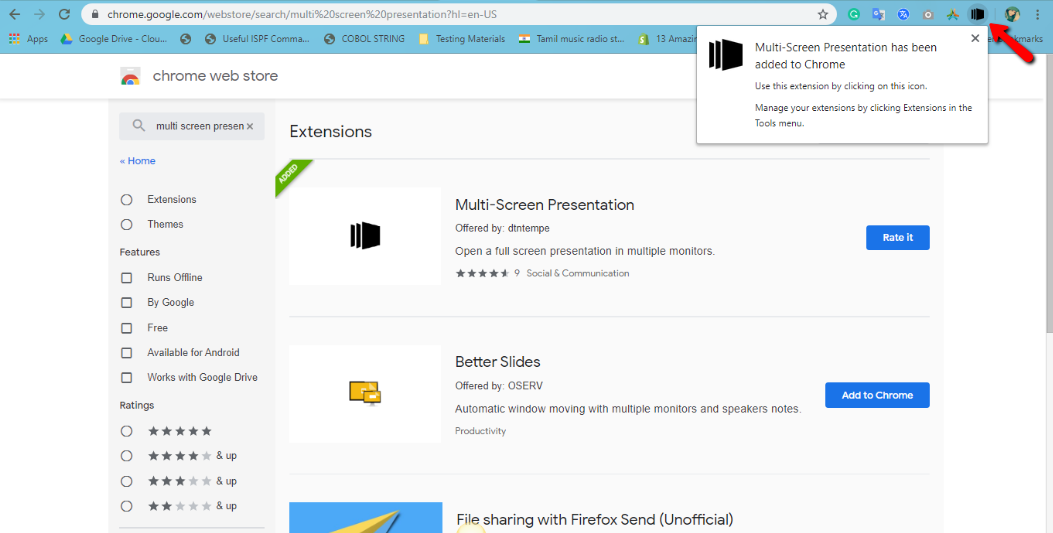

Plug-in added to the browser as an extension

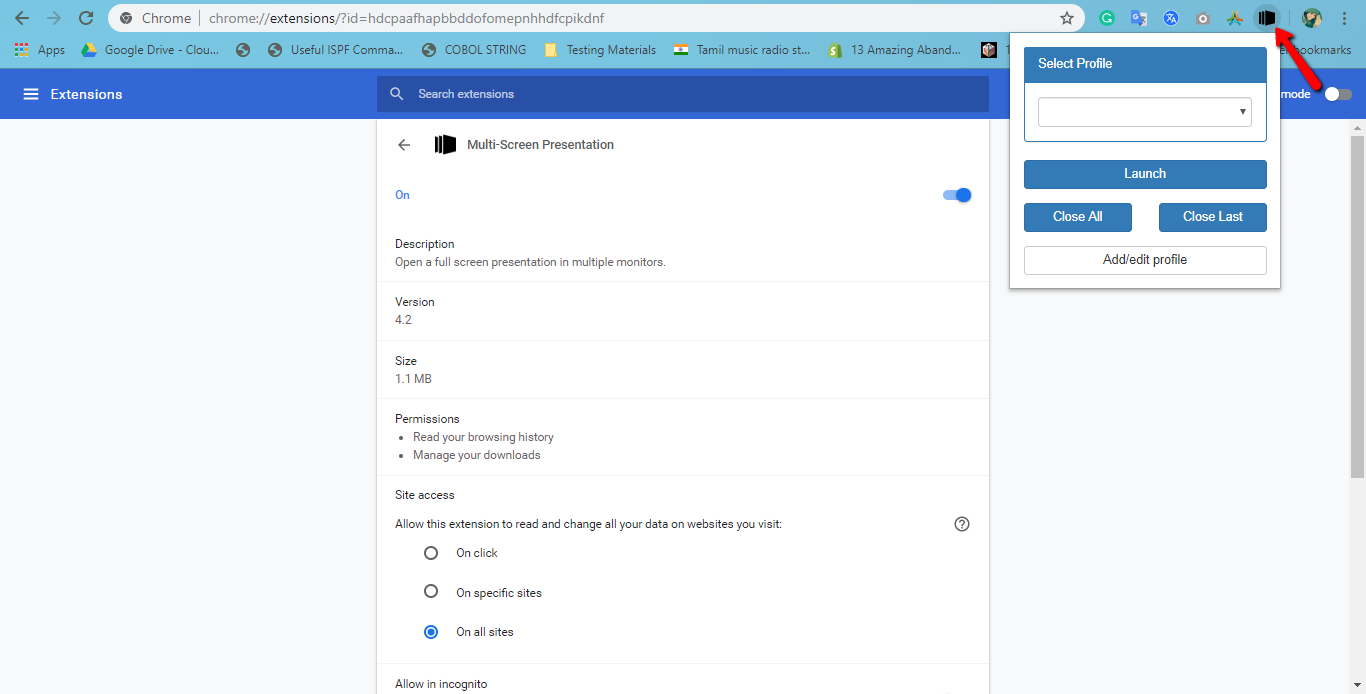

Click on the plug-in symbol to open the Select Profile window

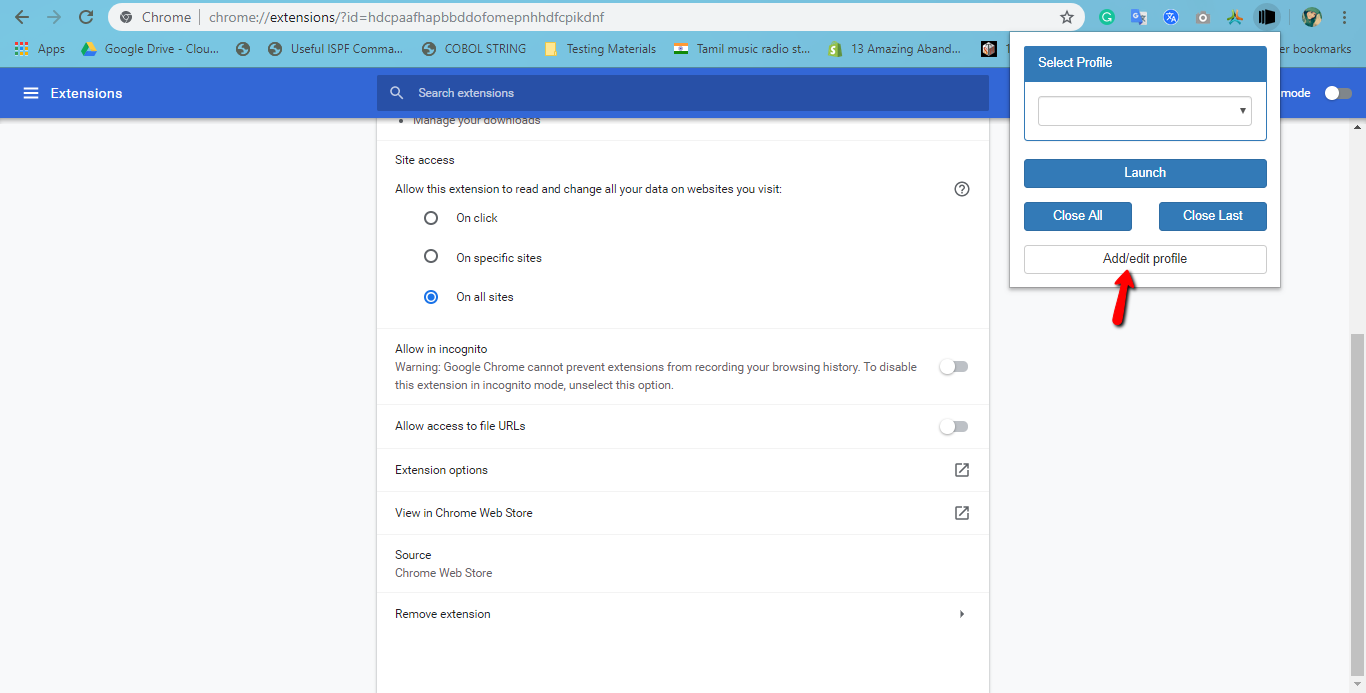

Click on Add/edit profile to add profile into the plug-in (if the wished profile doesnt exist)

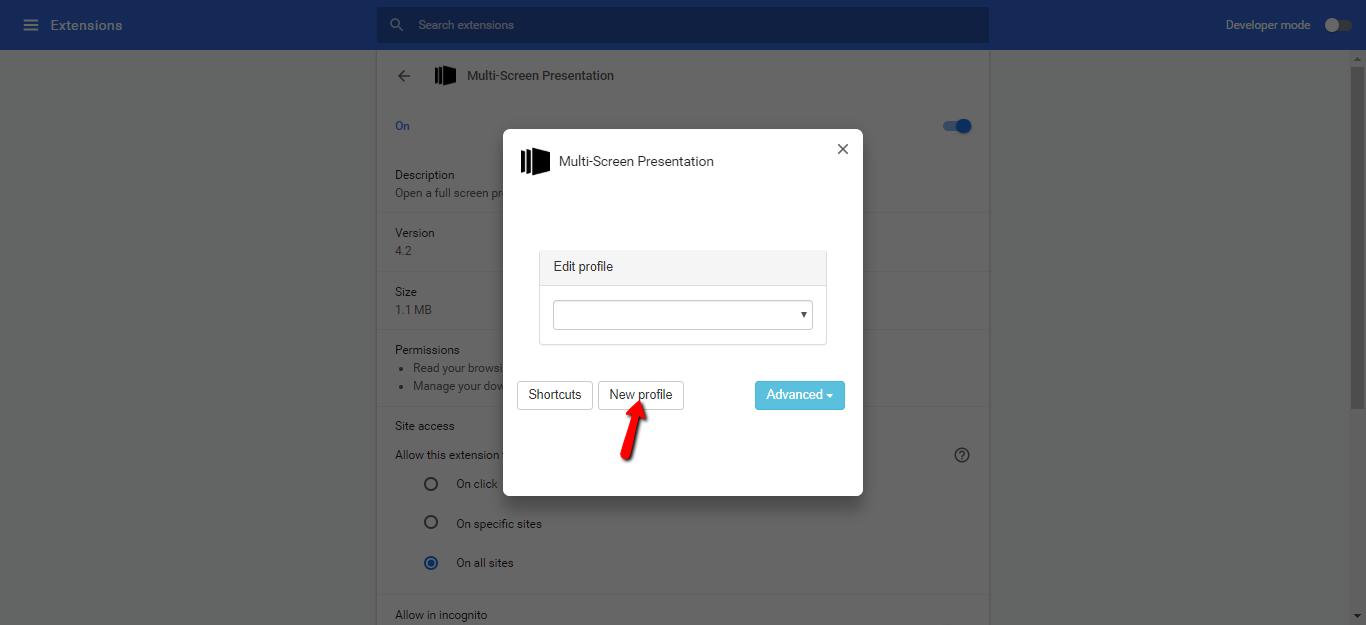

Choose New profile

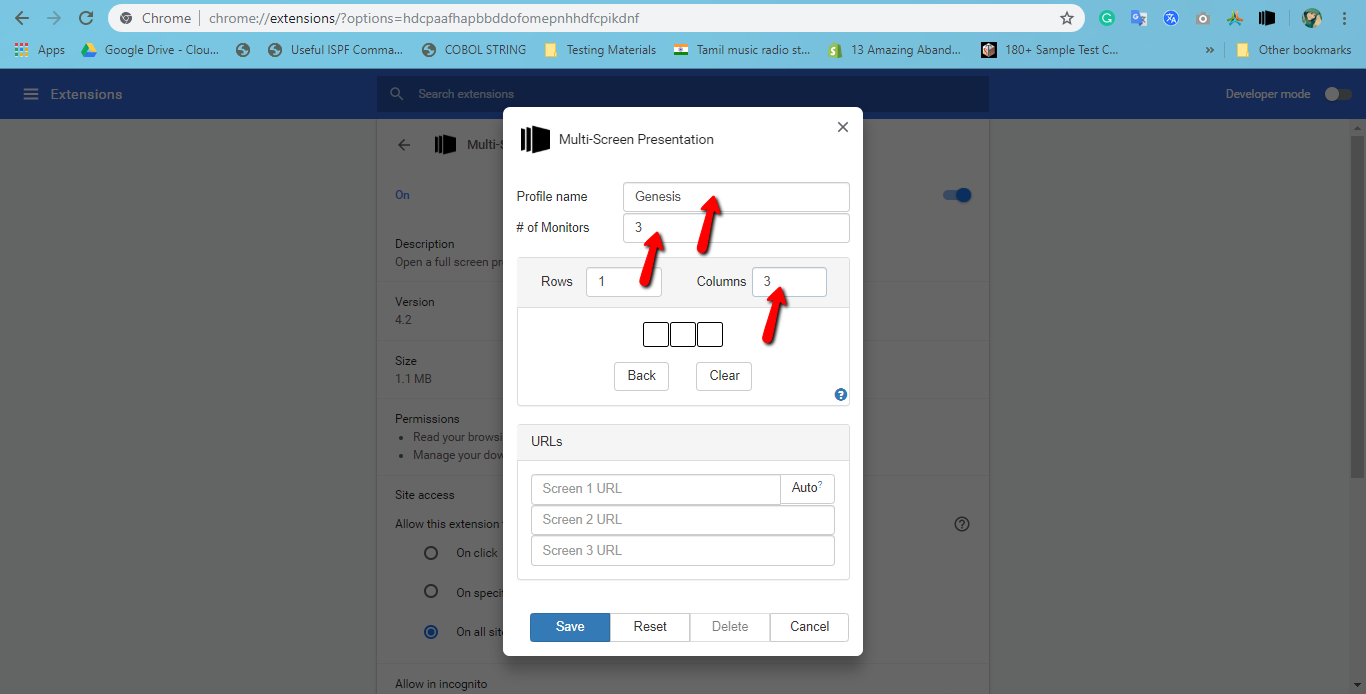

Give a name under Profile nameenter the wished total amount of screens as # of Monitorsamount of rows (vertically aligned screens) and columns (horizontally aligned screens) in Rows and Columns





The amount of the screens will be displayed as entered.

Double-tap to choose the primary screen/window (double tapped screen will be outlined blue to denote) and single-tap to choose additional screen (will be on the black thick border)

Picture 40







Enter the URL of the page in the respective column where it shall be displayed. Click the Save to save the profile one it is done

Picture 46



The available profile will be displayed on the extensions dropdown menu.

Picture 49



Click on Launch

Picture 52









Once Launch clicked, the screens will open in full screen view (in our example 3 screens as below)

.Picture 61

Picture 67

Picture 64



To import the defined profile, click on the extension’ symbol

Click on Add/edit profile

Picture 70







Click on Advanced to get the available options and select Export Profiles or Import Profiles to export or import

Picture 73







By clicking on Export Profiles, the profile(s) will be exported as .json file

Picture 76






Select All files (*.*)

Picture 82



Click on Import Profile to export???? as .json file



Picture 79











Picture 85



Tick the marked checkbox and click OK

Picture 88



The imported profile will be added to the Multi-Screen Presentation extension of the other working desk.
